Want to take on more orders with professional injection mold design support, while keeping your own production running efficiently?
Need product development engineering support to move your new product from concept drawings to mass production?
If any of these resonates with you, TopMolders Engineering is your ideal external mold design department — a trusted long-term engineering partner.
✅ Design only | No machining, no production orders, never compete for your clients.
"TopMolders delivered DFM in 24 hours. Their design reduced cycle time by 22%. We've outsourced multiple projects to them."
"Professional NDA process. Drawings were ready-to-machine. Zero issues. They understand DME standards perfectly."
Your Mold Manufacturing Challenges — Solved by Our Design
- Your Challenge: 40% of mold costs go to rework & modifications
- Our Design Solves: First-shot-right design cuts rework by 50%+
- Your Challenge: Trial failures delay production & burn cash
- Our Design Solves: DFM + (optional) Moldflow simulation eliminates surprises
- Your Challenge: Cheap drafters don't understand shop-floor realities
- Our Design Solves: Our designers are Journeyman Mold Makers with decades of shop-floor experience — they design for easy machining, smooth assembly, and reliable production
- Your Challenge: US/EU local designers cost $80–150/hour
- Our Design Solves: Fixed-price project model — save 50%+ without sacrificing quality
-

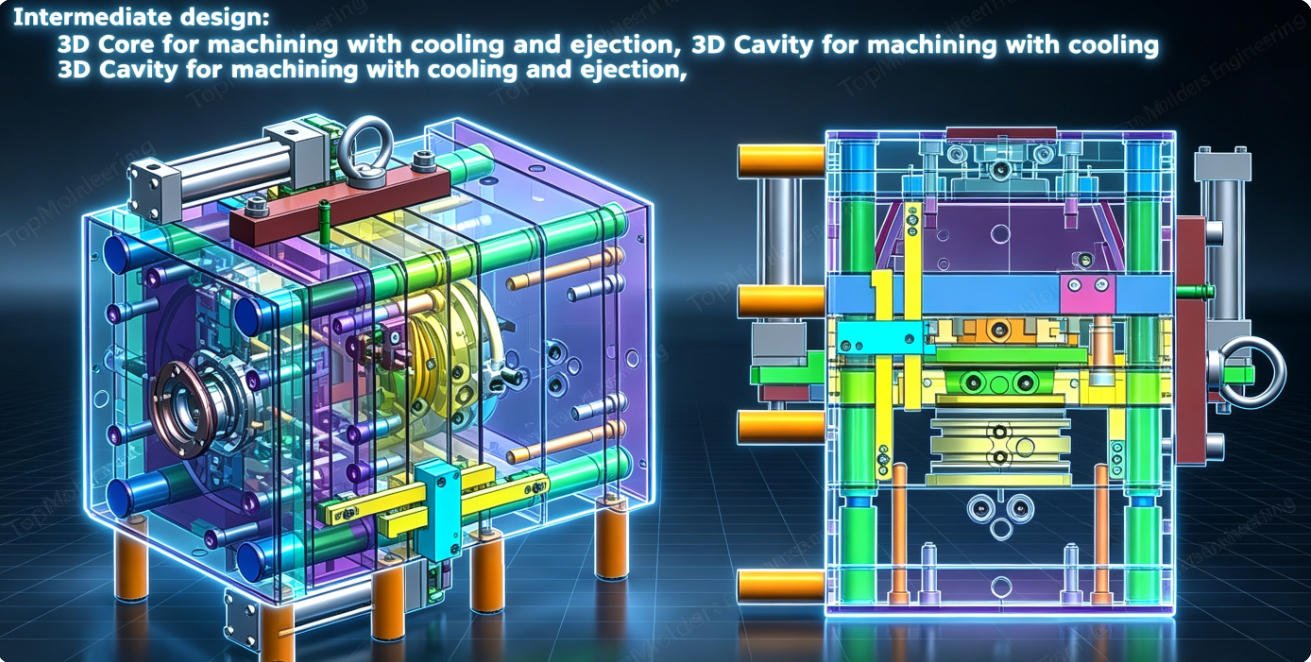

Your Challenge: Mold has failed multiple trials — stuck in endless rework
Our Design Solves: Full redesign from the ground up. Real case: 6 failed trials → we made it right on the first shot.
The Mold Design Partner You've Been Looking For
TopMolders Engineering focuses exclusively on mold design services. We only deliver design solutions. We do not engage in mold manufacturing or accept production orders, so we will never compete with you.
30+ Years Focused
Pure mold‑design service only, no mold manufacturing. We take no production orders and never compete with your business — your neutral external technical team.
Global Standards
European · American · Japanese — DME, HASCO, Meusburger, Omni and more.
Fast & Reliable
Free DFM within 24h. Quick turnaround, on-time delivery, every time.
Seamless Communication
One-on-one follow-up. You, your team, and your mold makers share ideas.
Designed by Mold Makers
Our designers are experienced Journeyman Mold Makers. We know how your shop works.
Why Reliability Matters
Your mold design is too critical to leave to a freelancer. Here's why a team-based approach wins.
- No team backup — if they disappear, you're stuck
- Inconsistent quality, no peer review
- May not understand DME/HASCO standards
- No guarantee of on-time delivery
- Communication gaps, timezone delays
- IP protection is a gamble
- Dedicated team with senior engineer oversight
- Multi-stage quality review — every design is checked
- DME · HASCO · Meusburger standard experts
- Fixed-price · On-time delivery guaranteed
- 6-hour response time (EST/CET/CST)
- All designs reviewed by Journeyman Mold Makers — designed for your shop floor
- NDA protected · Never compete with clients
High‑End Project Capability — Take the Jobs Others Can't
We specialize in technically‑tough mold‑design projects many suppliers cannot deliver: new‑energy battery trays, automotive structural parts, medical device housings, and precision electronics enclosures.
We bring proven hands‑on expertise to applications requiring high precision, complex slide mechanisms, and tight tolerances.
New Energy

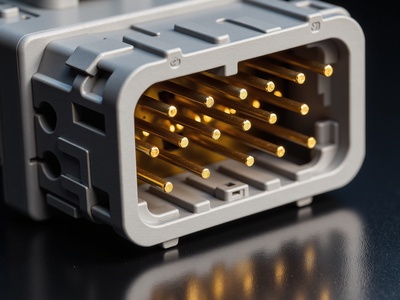

Battery trays, connectors, thermal management

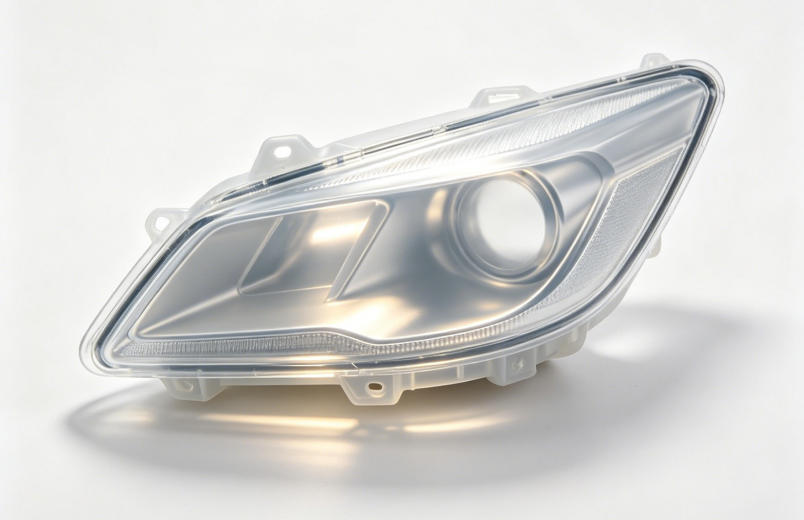

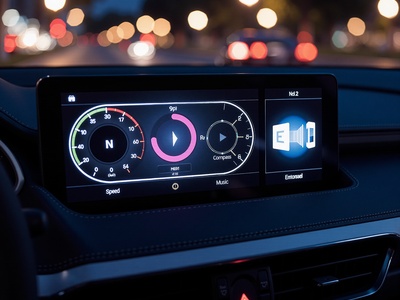

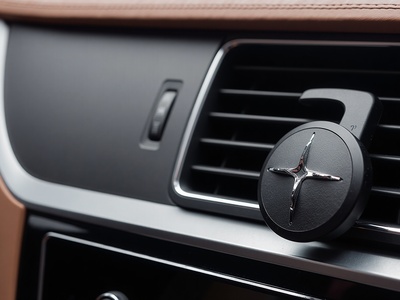

Automotive

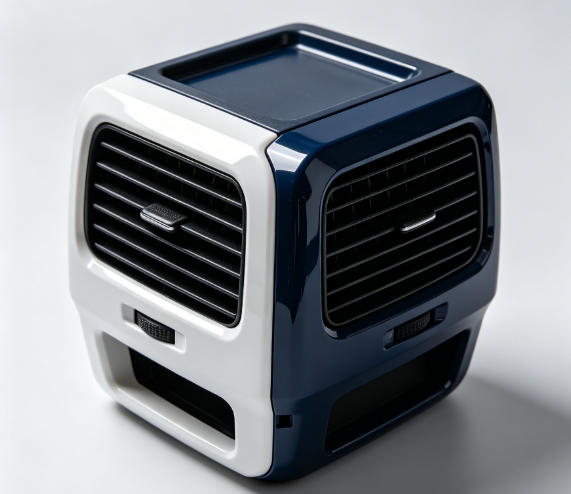

Interior trim, HVAC, lighting, structural

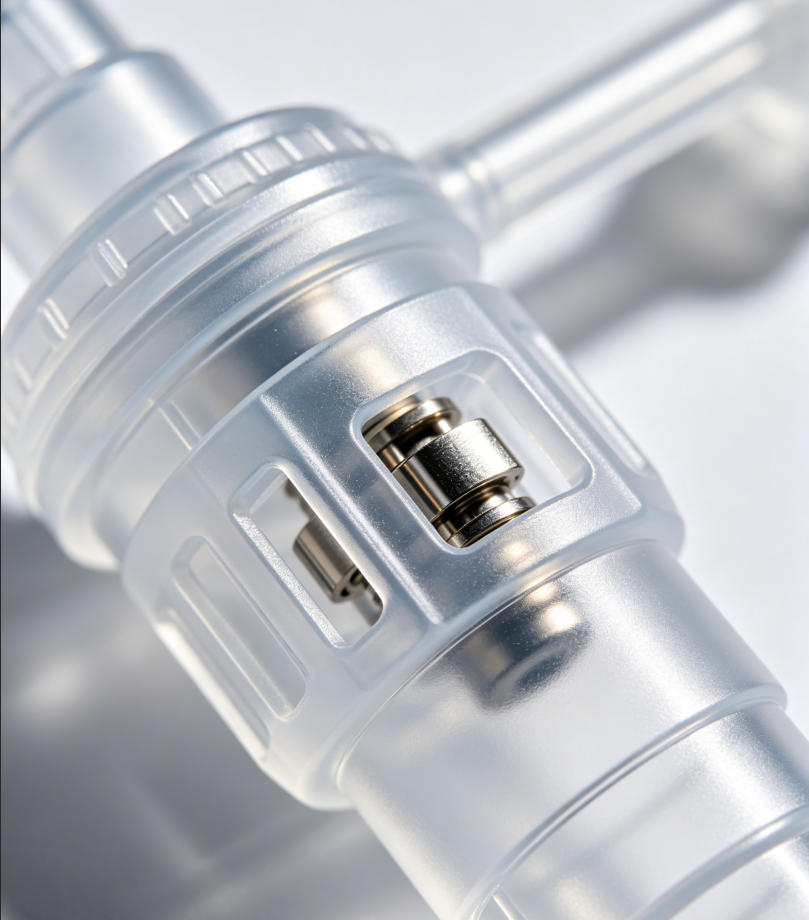

Medical

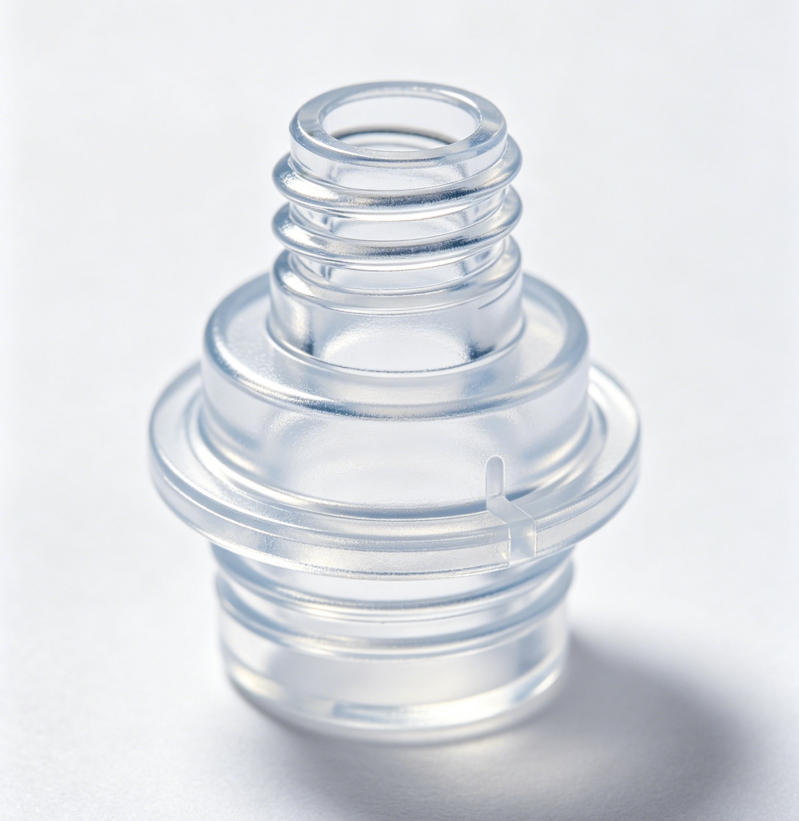

Device housings, Luer locks, precision parts
Precision Electronics

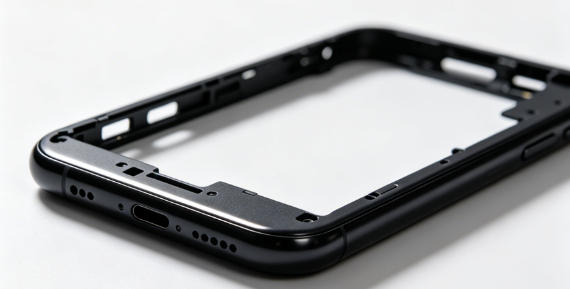

Smartphone frames, wearables, connectors

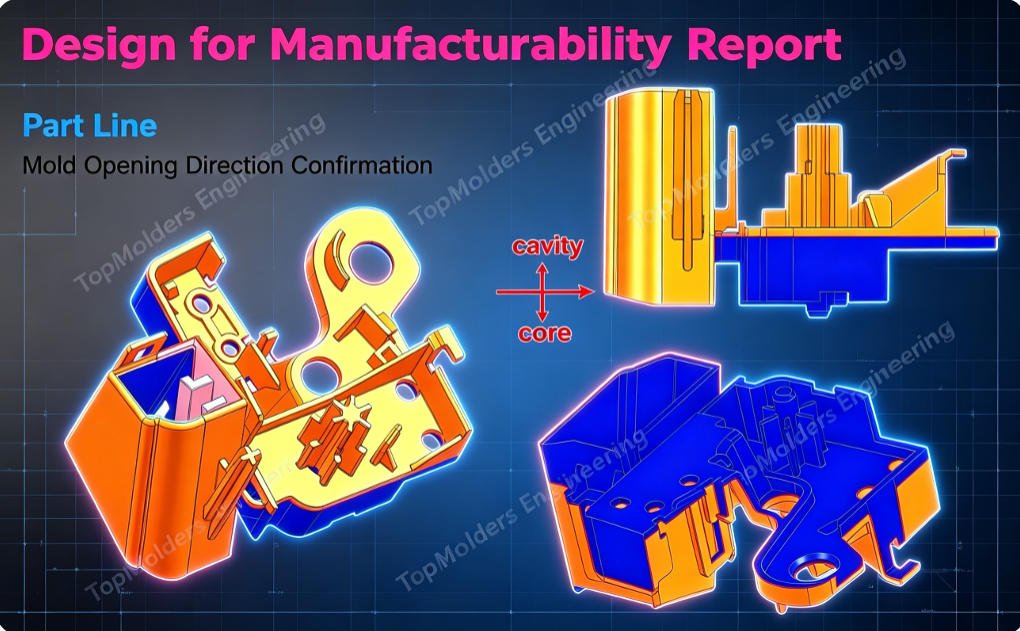

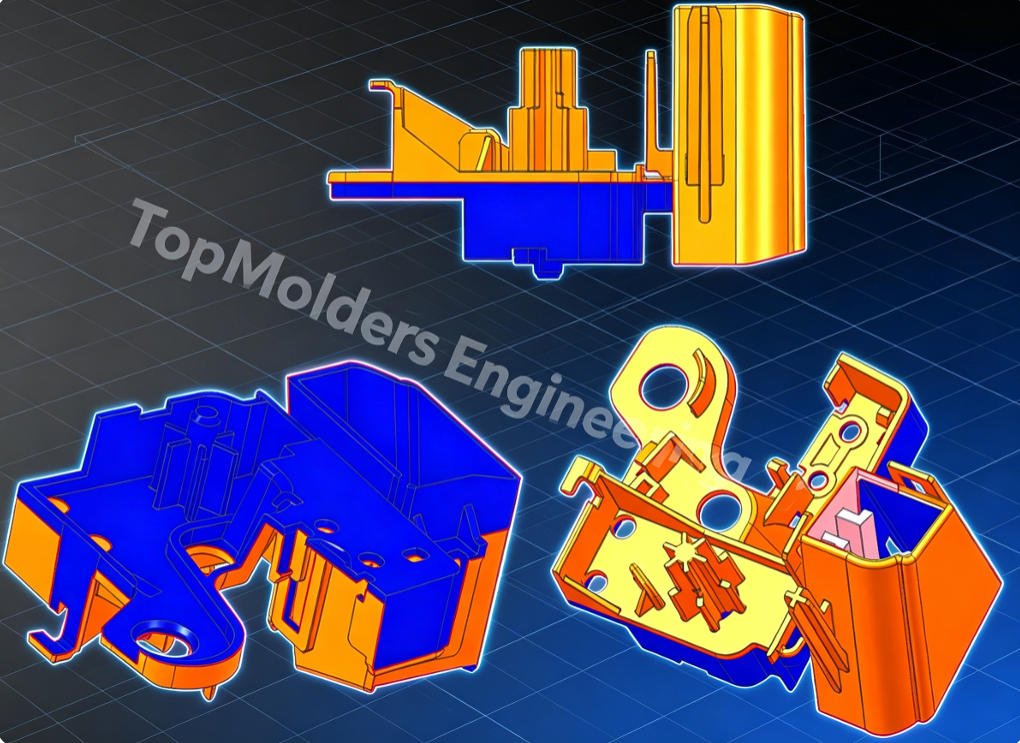

Cost Reduction Design Review
We review every part individually and propose design improvements that reduce mold costs — improvements often missed during quoting. We estimate how much each design change can save you, giving you a clear ROI before you cut steel.
We go through each part individually — not just the assembly — and identify cost-saving opportunities that are often invisible to mold shops during the quoting phase. Every design change comes with an estimated savings figure, so you know your ROI before you approve the tooling.

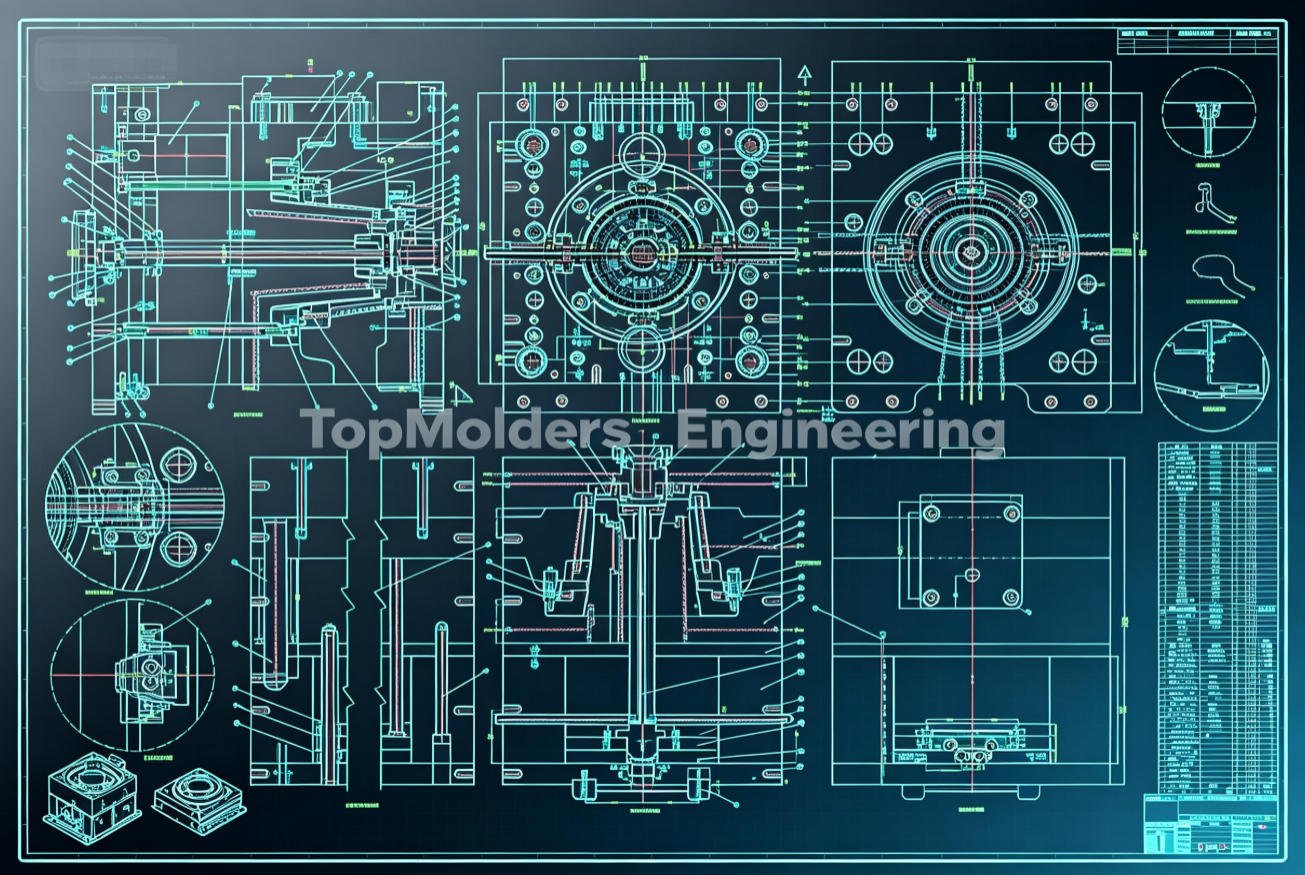

Your Mold, Your Standard, Your Way
Molds can be custom designed from the ground up or incorporate standard mold bases and components from world-class suppliers — saving time and money on mold design, construction, and future maintenance.
We incorporate standard mold bases and components from world-class suppliers:
Uncompromised Quality
Every design optimized for manufacturability and long-term production stability.
On-Time Schedule
Structured process + senior engineer oversight — deliver on time, every time.
Absolute Confidentiality
Strict NDA before any project. We never compete with our clients. Ever.
Enter your project details — get a real cost estimate
Rough estimate to give you a ballpark. Exact quote upon file upload. ⏱️ Quotes valid for 15 days · Free DFM analysis included
We Solve the "Unmoldable"

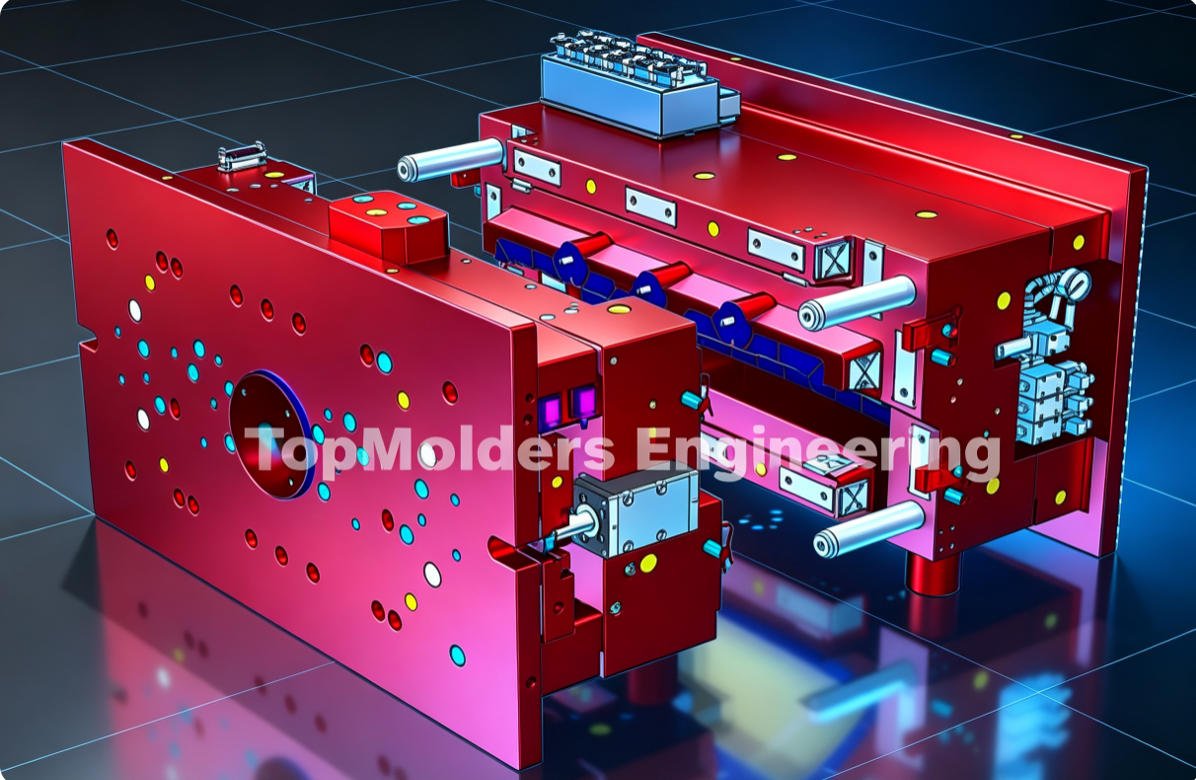

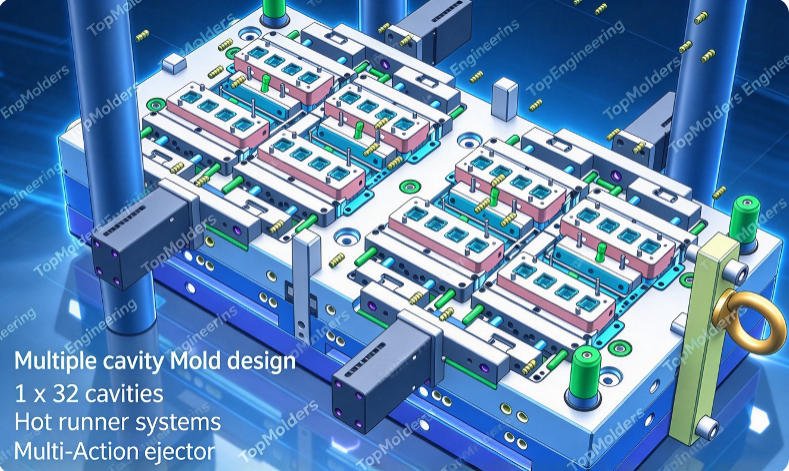

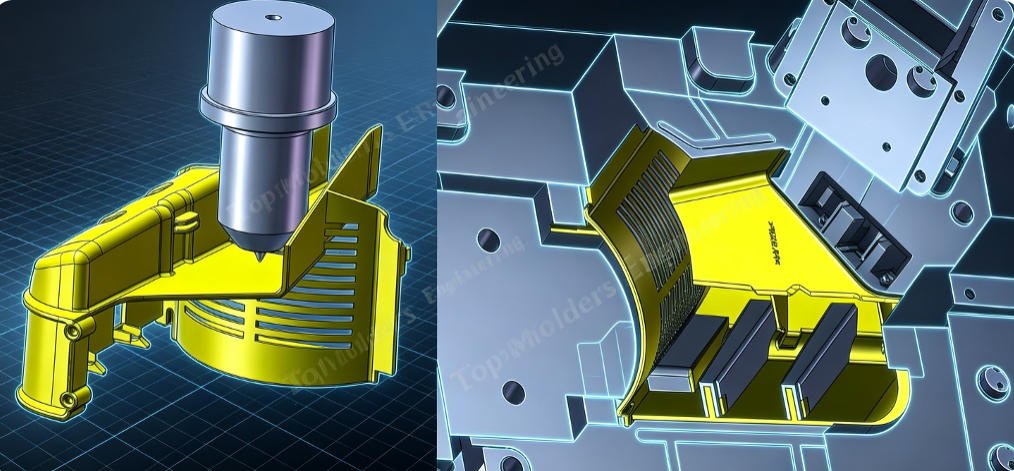

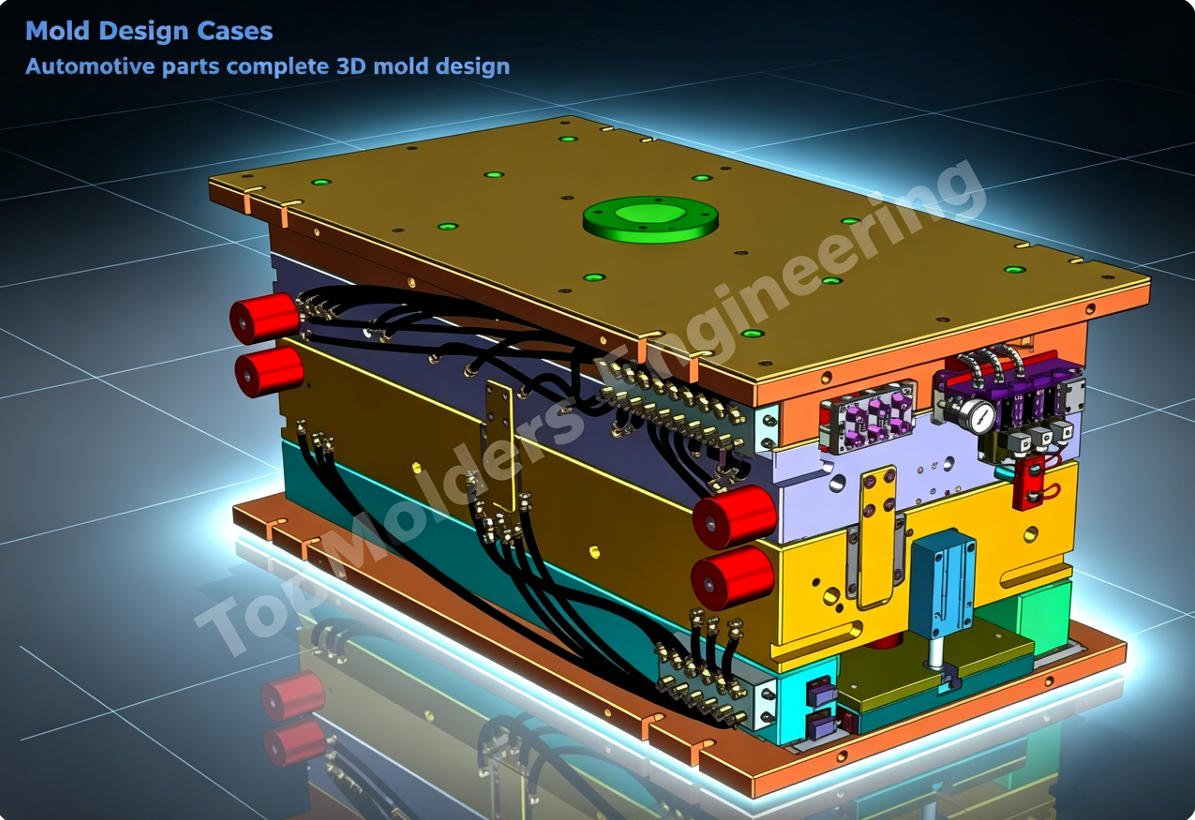

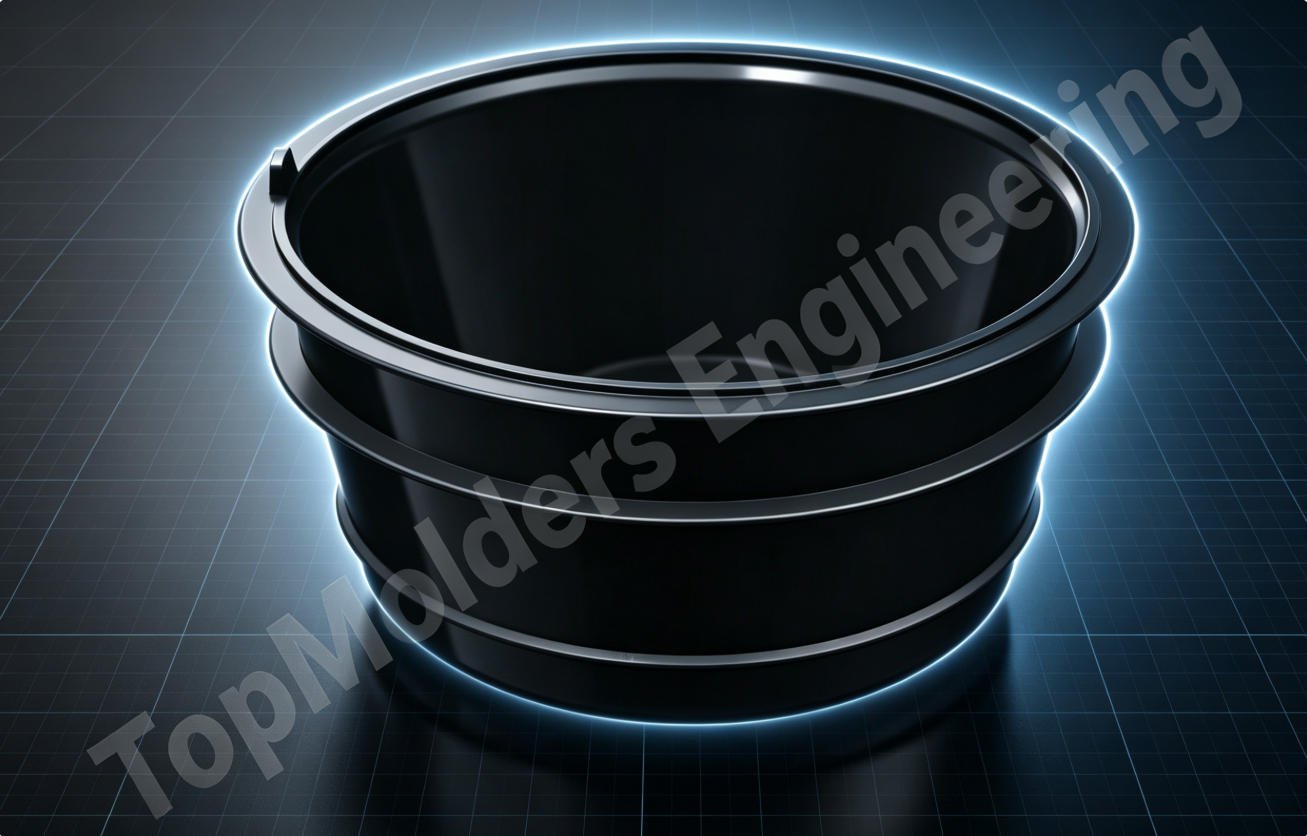

Complex slides · Thin-wall parts · Multi-cavity precision · Die-casting porosity — send us your 3D files, we'll show you the best way forward.

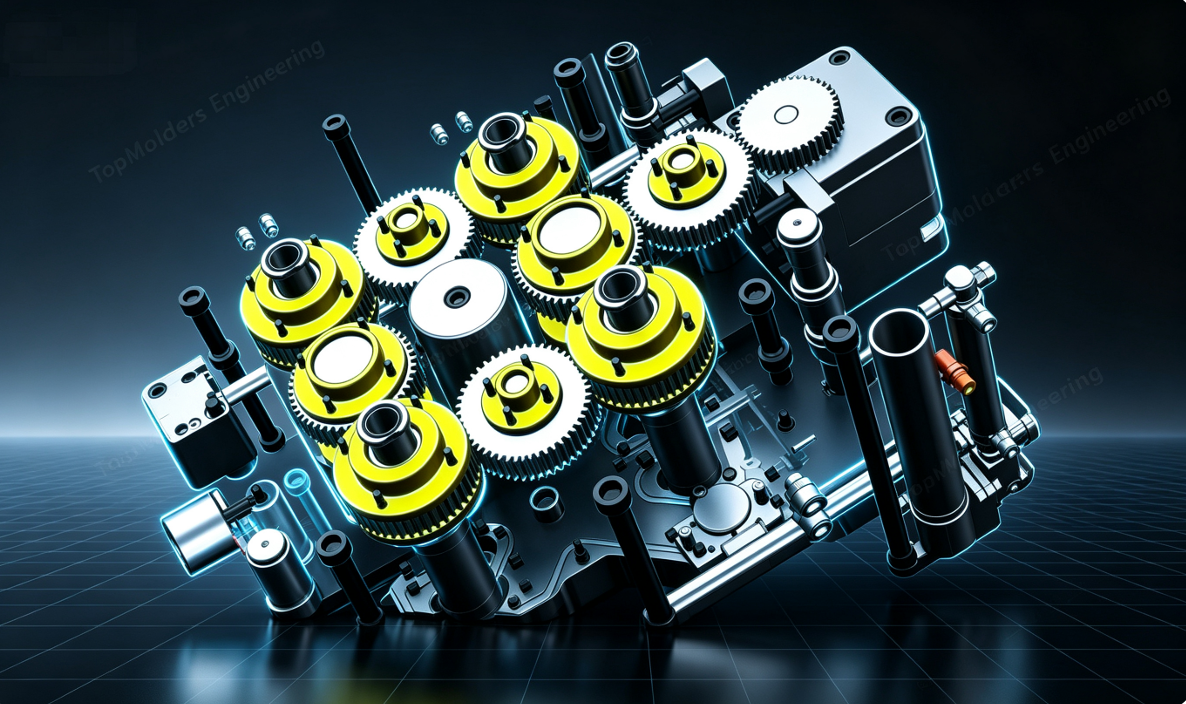

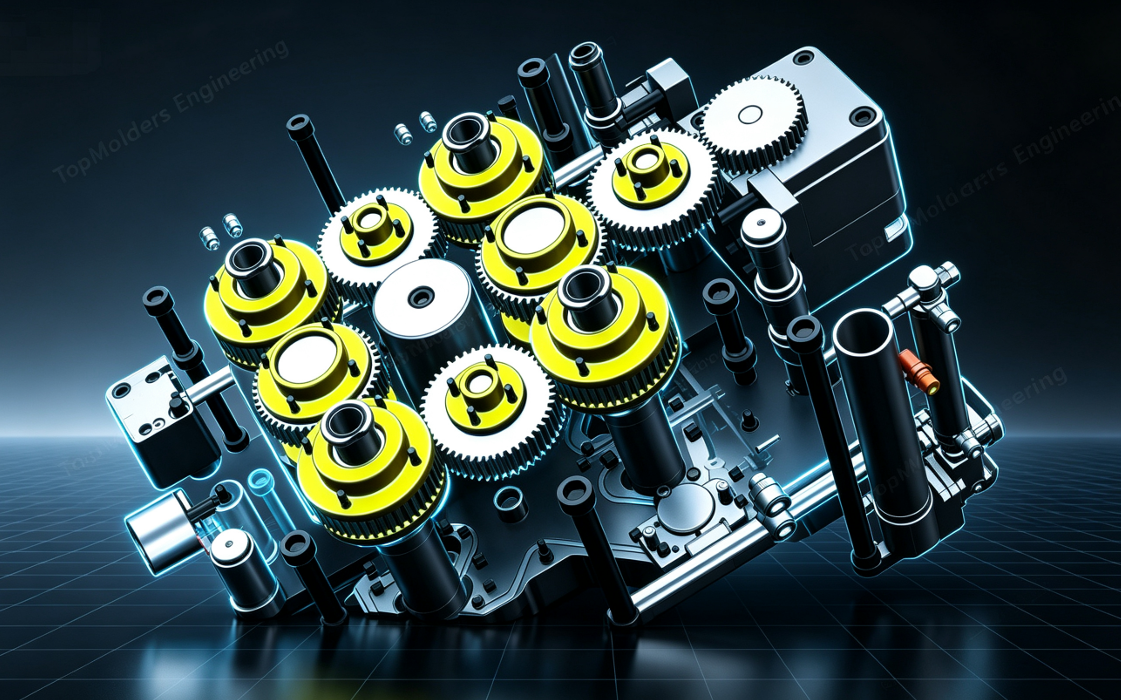

Precision Structure Design
Rooted in practical machining logic, we design molds with optimized processing paths for smooth manufacturing and stable mass production.
Learn More →
3D Solid Modeling
Generate 100% accurate 3D solid‑body models from hard‑copy drawings or 2D CAD data. One precise source model supports engineering drawings, CAE analysis (mold filling, cooling, warpage, FEA), clearance & assembly checks, rapid prototyping and marketing renderings.
Learn More →
Moldflow Analysis · Full‑Scope Simulation
Conduct complete injection molding simulation to predict filling, cooling, packing and warpage issues before steel‑cutting. Optimize gate, venting and cooling layouts, identify risks such as sink marks, flash, unbalanced filling and part deformation. Resolve molding concerns at drawing stage to avoid later welding and repeated mold revisions.
Learn More →
TopMolders Engineering delivers high‑quality mold engineering services for clients at home and worldwide.
We specialize in mold engineering design. Serving OEMs, mold‑making factories and manufacturing partners, we offer complete, mature and accurate custom full‑3D mold‑design services. We focus on practical design, material‑saving structure and cost‑optimized solutions. Strict confidentiality is guaranteed for all project documents. Custom‑tailored design proposals are available according to your product types, mold standards and mass‑production requirements.
We provide one‑stop product engineering solutions including 3D solid product modeling, early‑stage DFM manufacturability review, structural optimization and full‑3D mold assembly design. Potential molding, structural and machining risks are avoided at the early project phase. This ensures high design accuracy, stable mold performance and reliable deliverables, laying a solid engineering foundation for successful trial‑molding and consistent mass‑production.
We review the product before the design work starts and supply the detailed feasibility report to the customer for review. This helps customers to take appropriate actions before cutting the steel.
What We Can Help With
If your business needs a professional designer to complete a new plastic injection mold project, molded part design change, mechanical design, or set of detail drawings — we can help.
Confidential & Secure
All mold design drawings will remain strictly confidential and can be transferred quickly and securely through FTP site or other secure channels.
The Critical Role of Mold Design
Mold design is the core of mold manufacturing. At TopMolders Engineering, we treat every design as the foundation of your entire manufacturing process. Our 30+ years of experience ensure your mold is designed to produce parts efficiently, reliably, and cost-effectively.
Communication-Rich Design Environment: Where your customers and mold makers can share and refine ideas regardless of location or work schedules. You win with injection mold design services that meet yours, your team members', and your customers' requirements.
Our Design Philosophy: Built by Journeyman Mold Makers
Not just outsourced drafters — we are your external engineering department.
TopMolders Engineering designs every mold from the practical perspective of a seasoned Journeyman Mold Maker — we know the shop floor, we understand machining, we've assembled countless molds. Every component we design is easy to machine, easy to assemble, with no unnecessary detours.
What we excel at? Our 30-year senior engineering team specializes in the "tough ones" — complex slides, thin-wall parts, multi-cavity precision, die-casting porosity. Send us your 3D files, and we'll tell you the best way forward.
Product & Tooling — Designed in Parallel.
Unlike novice designers who focus solely on the product, we factor tooling considerations into every product design decision. The result? A part that meets your engineering requirements and saves you money at the tooling and production stages.
3D Solid Modeling — The Foundation of Precision.
Every mold design starts with a 100% correct 3‑D solid model of your part — developed from paper drawings or 2‑D CAD data. This single model serves multiple purposes: engineering drawings, CAE simulation, clearance/assembly verification, rapid prototyping, and marketing renderings. One model, infinite applications — reducing time and cost to market.
Beyond Mold Design — Complete Solutions.
We don't just design molds. We provide manufacturing plans that allow your toolmaker to start construction immediately on all components — enabling simultaneous construction of every mold component. We also analyze plastic parts before tooling, identifying design changes that improve manufacturability, reduce mold complexity, and lower production costs. One partner, every solution — from concept to production.
TopMolders Engineering: More than a drafting service.
We deliver stable, reliable, high-end mold designs ready for real-world mass production.
We approach mold design from the mold shop’s perspective. Backed by hands-on shop-floor experience, our team fully understands machining processes, mold-fitter assembly, on-site mold trials and tuning, and high-volume injection molding conditions.
Acting as your external engineering team, we fill gaps in your in-house design capacity, take on challenging assignments, and reduce development workload for complex products. Our objective is to become your trusted long-term third-party mold design partner.
We support a broad customer base, including domestic mold makers, injection molding facilities, mold trading companies, and product development companies. We also accept direct mold design commissions from clients across Europe and North America.
Stable Team
Dedicated designers, consistent point of contact
NDA Protected
Signed before any project kickoff
Global Standards
DME · HASCO · Meusburger · Omni · European/American/Japanese specs
Professional Mold Design Team
30+ years combined experience
Dongguan, China · Serving Global Clients
1000+
Projects
50+
Global Clients
85%+
First-Trial Success
Business references will be provided upon your request.
Mold Design — Built from Shop‑Floor Experience
The seasoned mold makers and industrial designers at TopMolders Engineering have an unwavering commitment to meeting the design needs of our customers; we will work outside traditional business hours if required to ensure that your projects are delivered on time and on budget.
You no longer have to worry about when you can get to starting a layout because your engineering team is busily building the current mold, resulting in cost overruns and tardy deliveries.
TopMolders design each mold from the point of view of a Journeyman Mold Maker who has the shop experience in all the areas of modern mold making.
TopMolders has extensive experience building and assembling many different types of molds, which give us the advantage of designing easy‑to‑build and assemble components.
Mold Types We Design:
End‑to‑End Engineering Solutions — From Concept to Production
TopMolders Engineering delivers a comprehensive suite of solutions covering every stage of your product development journey:
Custom services available. If your need doesn't fit neatly into a category — just ask. We design solutions, not just drawings.
Concurrent Engineering: Product design, mold design, manufacturing planning, and CNC programming happen simultaneously — reducing time‑to‑market by weeks.

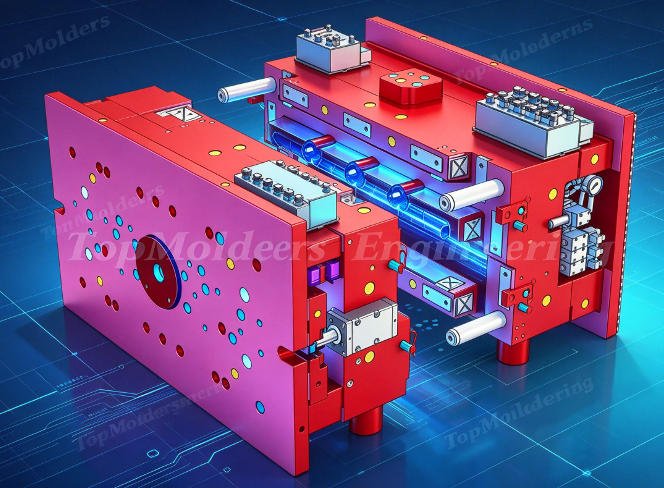

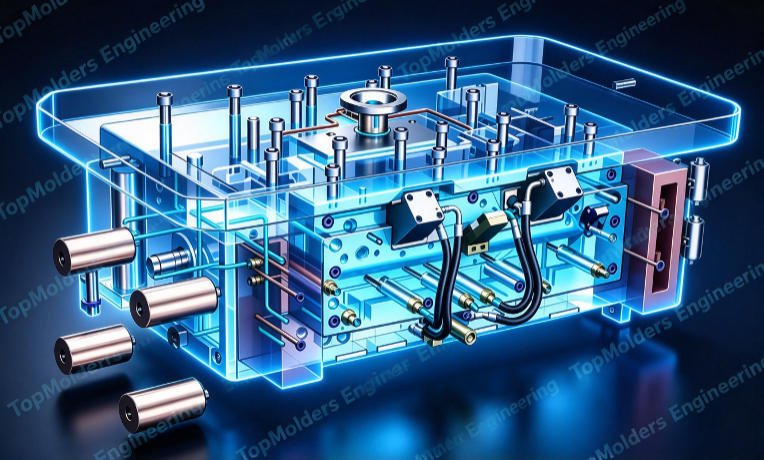

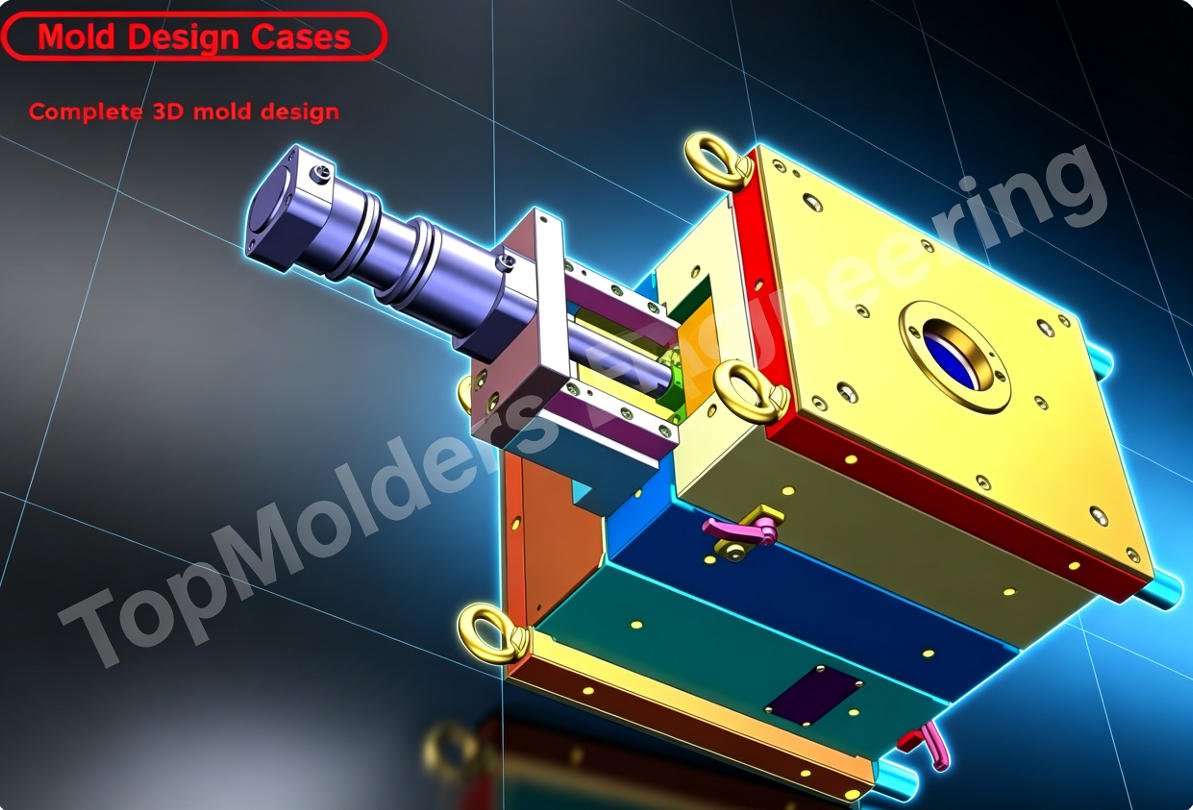

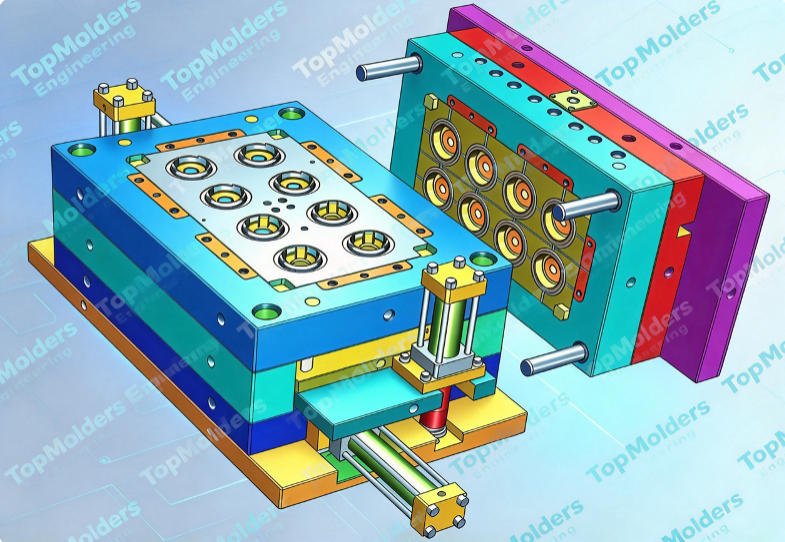

From Concept to Full 3D Assembly
→ Why this matters: Your mold needs to be manufacturable, not just beautiful. We design for your shop floor.
Mold design is the kernel part of mold manufacturing. TopMolders Engineering can design molds according to customer's requirements, such as DME, HASCO, and other standard systems. We are proficient in DME, HASCO hot runner molds, as well as PC/home appliance/automobile/mobile phone/commodity/double-layer molds in European/American/Japanese specifications.
Whether you require a basic mold or a complex mold, we have the skills and experience to design your mold accurately and on time. We offer extensive 3D mold design services ranging from simple parting line splits to full 3D mold assemblies. All components of your product can be modeled in 3D to assure correct design and functionality. 2D references and detail drawings are finalized or exported to a variety of other CAD packages.
We adopt international advanced systems — CAD/CAM/CAE — in mold design and processing, using professional software such as Pro/Engineer, SolidWorks, Unigraphics (NX). Customer can provide 2D drawings or 3D data in DXF, DWG, PRT, SAT, IGES, STEP formats, or simply send us a physical sample. We will scan the sample and make a product blueprint, then begin designing the mold assembly drawing immediately after customer confirms the blueprint.
Our staff will work with you to develop the mold you need using three-dimensional modeling and state-of-the-art technology to ensure a precise result. We will offer the mold assembly drawing for customer further discussion when necessary, considering about product parting line, gate, ejector position, water cooling layout, moving direction and distance of slides, etc., then define a solution with which the customer is most satisfied.
What we deliver: 3D solid models · 2D detail drawings · Assembly drawings · BOM · Electrode data · EDM setup sheets · Full documentation in your preferred CAD format.

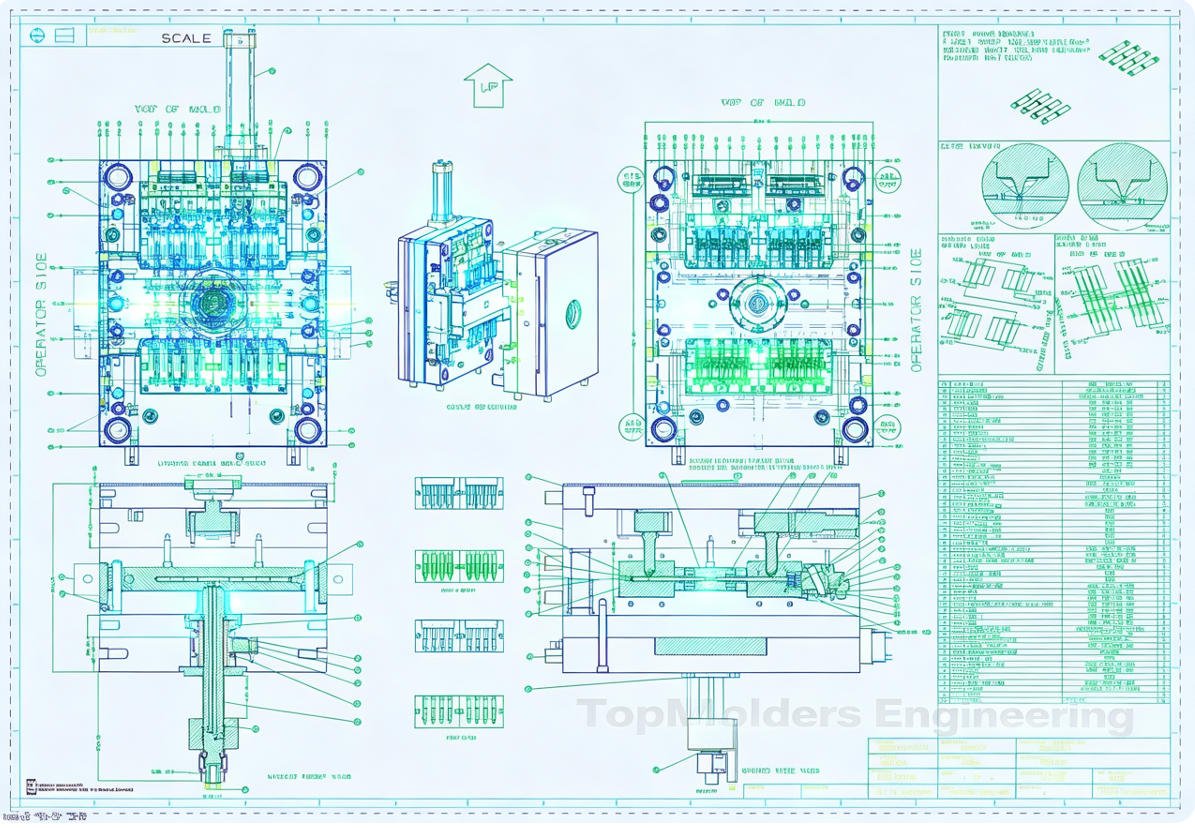

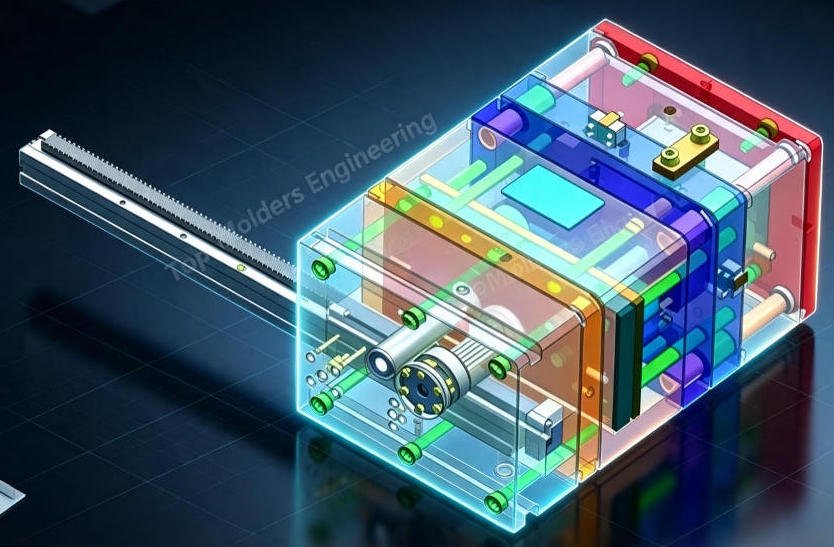

Complete 2D Drawing Package — Preliminary & Final
→ Why this matters: Clear 2D drawings eliminate confusion between design and machining. Your shop floor gets it right the first time.
TopMolders Engineering supplies complete 3D models, General Assembly drawings, and a full set of 2D detailing of all machined parts, plus Bill of Materials (BOM), modifications, and manufacture support. The General Assembly drawing will be ready for the first time according to your specifications and supplied information. To help you describe your requirements, fill out the Mold Specification Form, save and send it to TopMolders Engineering.
1. Preliminary Tool Drawings
The preliminary tool drawings should be assembly drawings containing at least 2 plane views (injection side view + ejection side view) and 2 sections (longitudinal and transversal).
The preliminary drawings must show:
- Functional design of the tool
- Cooling system (incl. separate clear cooling view)
- Injection system
- Tool dimensions
- Lifting holes
- Material/steel specifications
2. Final Tool Drawings
The final tool drawings should be assembly drawings containing at least 2 plane views (injection side view + ejection side view) and 2 sections (longitudinal and transversal).
The final drawings must show:
- Functional design of the tool
- Cooling system (incl. separate clear cooling view)
- Injection system (+ detail section of gates)
- Ejection system
- Hydraulic systems
- Gas assisted systems
- Electrical system hot-runners and connections
- Tool and main part dimensions
- Lifting holes and security details
- Materials and heat treatment according to tool standard/steel specifications
- Purchased parts including technical specification
Note: All drawings are prepared according to your specified standards (DME, HASCO, Meusburger, etc.) and can be delivered in your preferred CAD format.

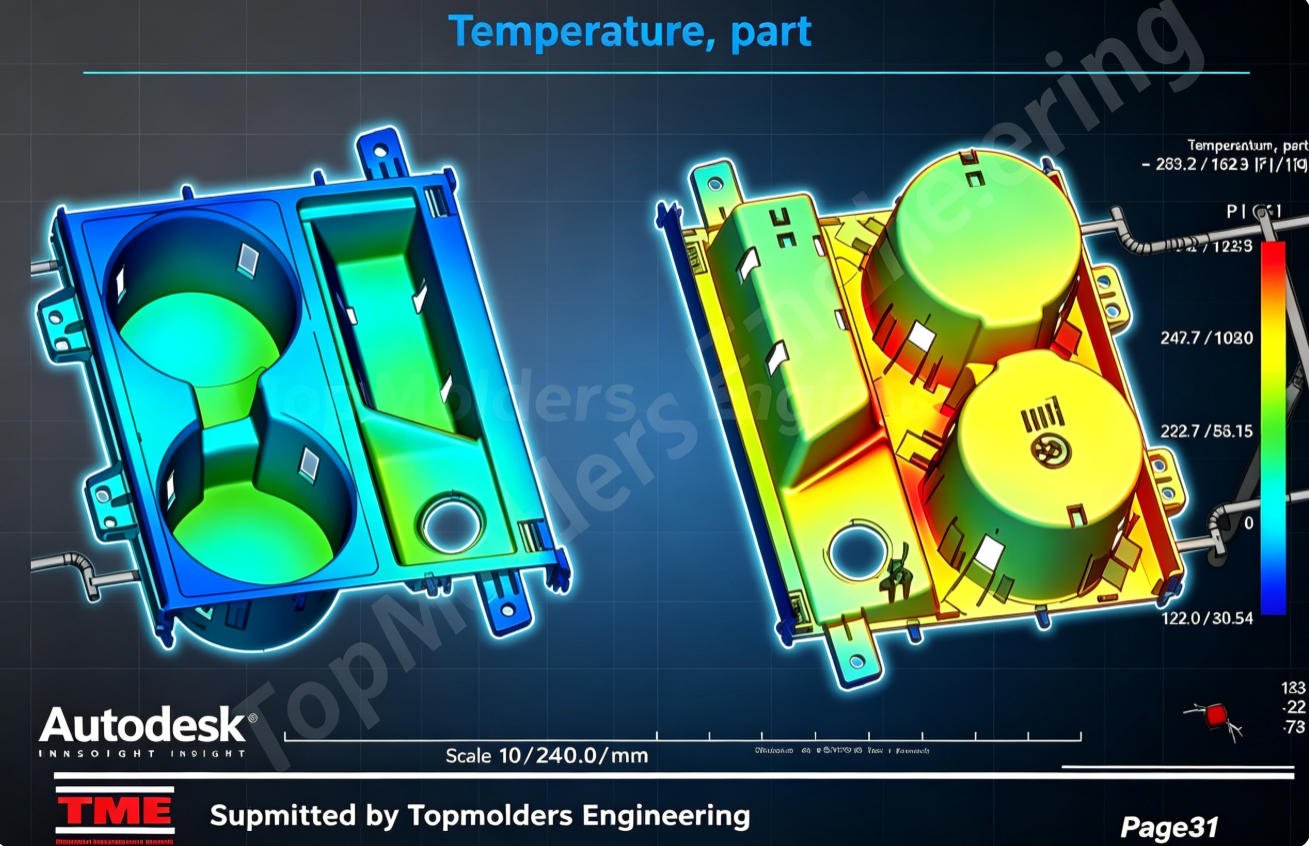

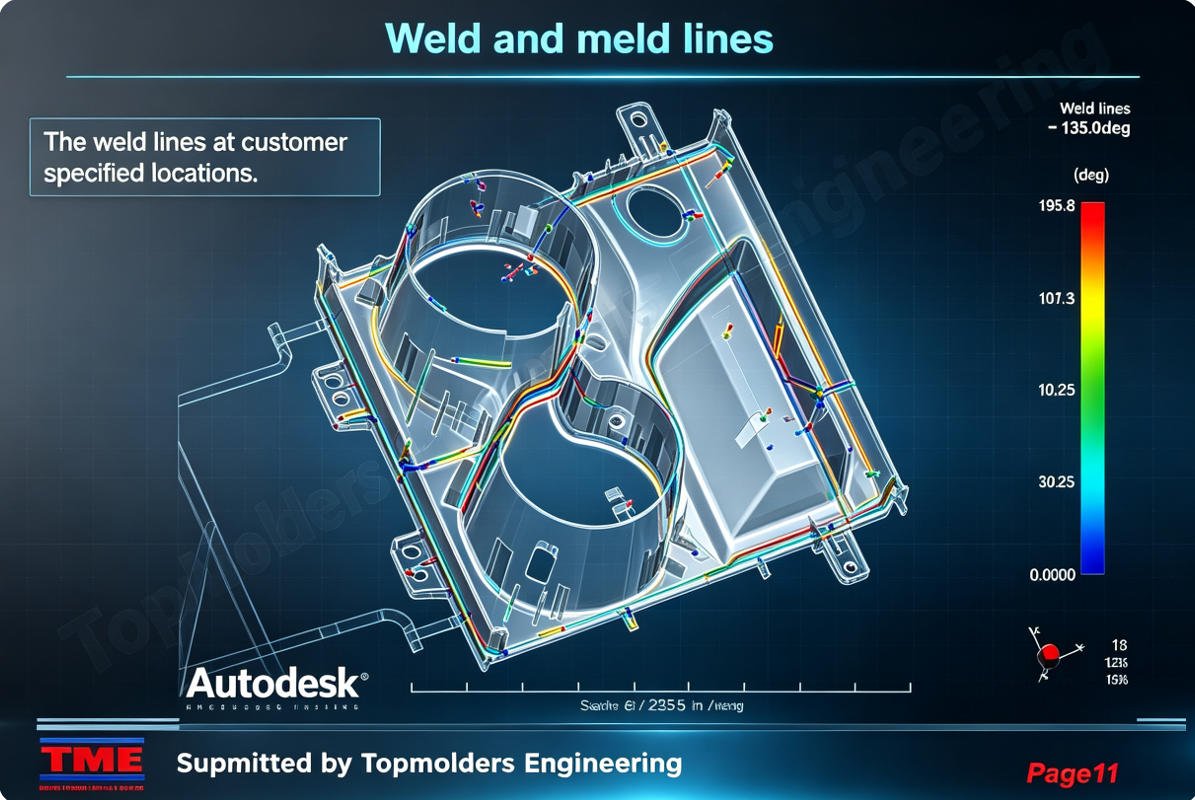

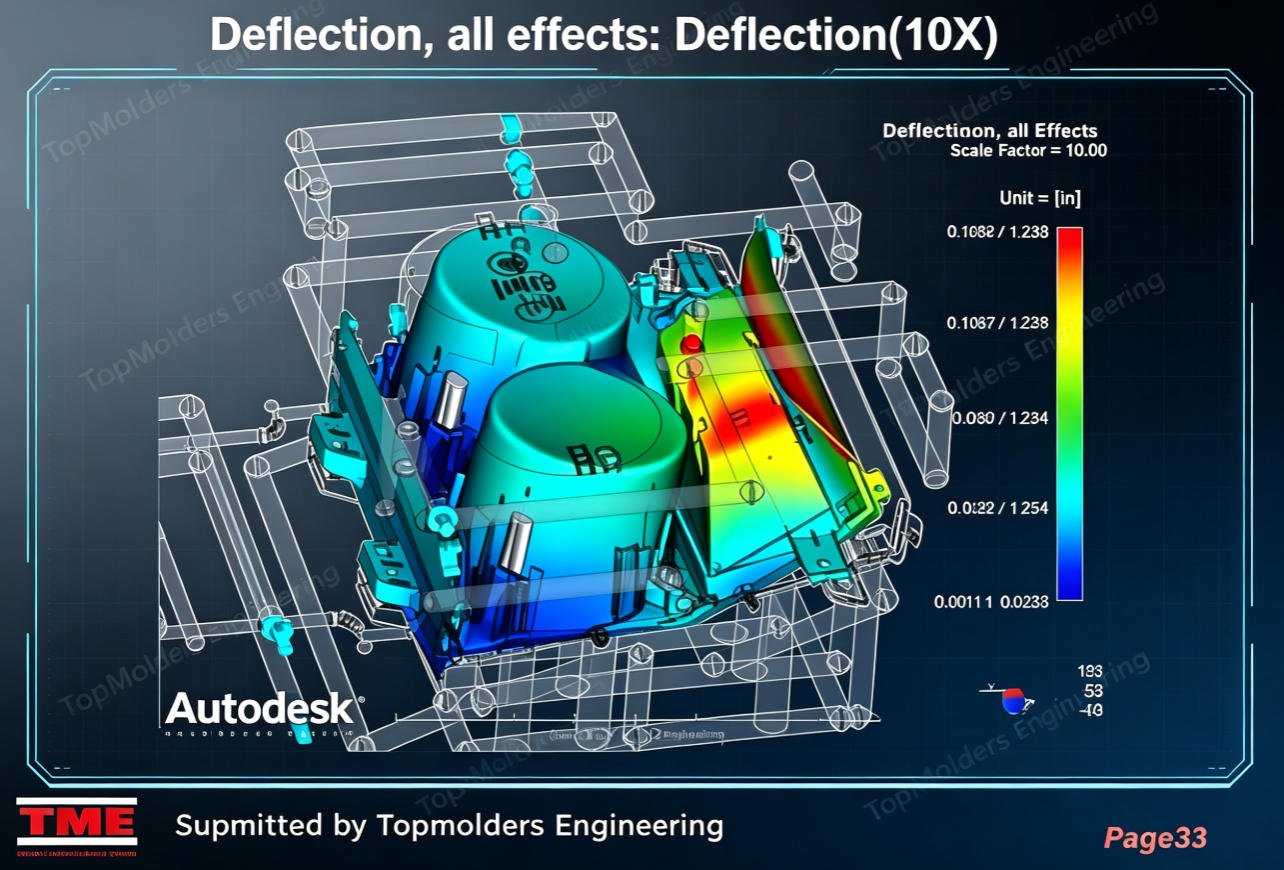

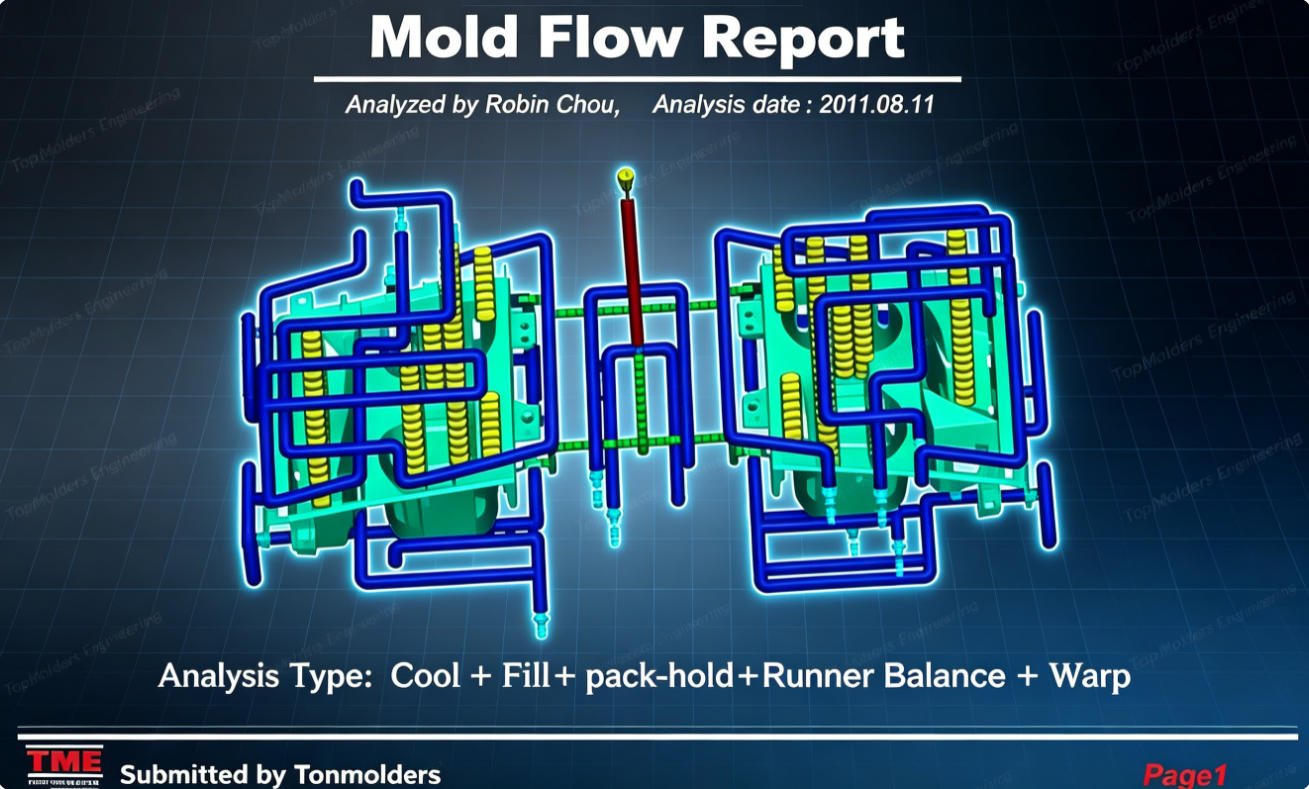

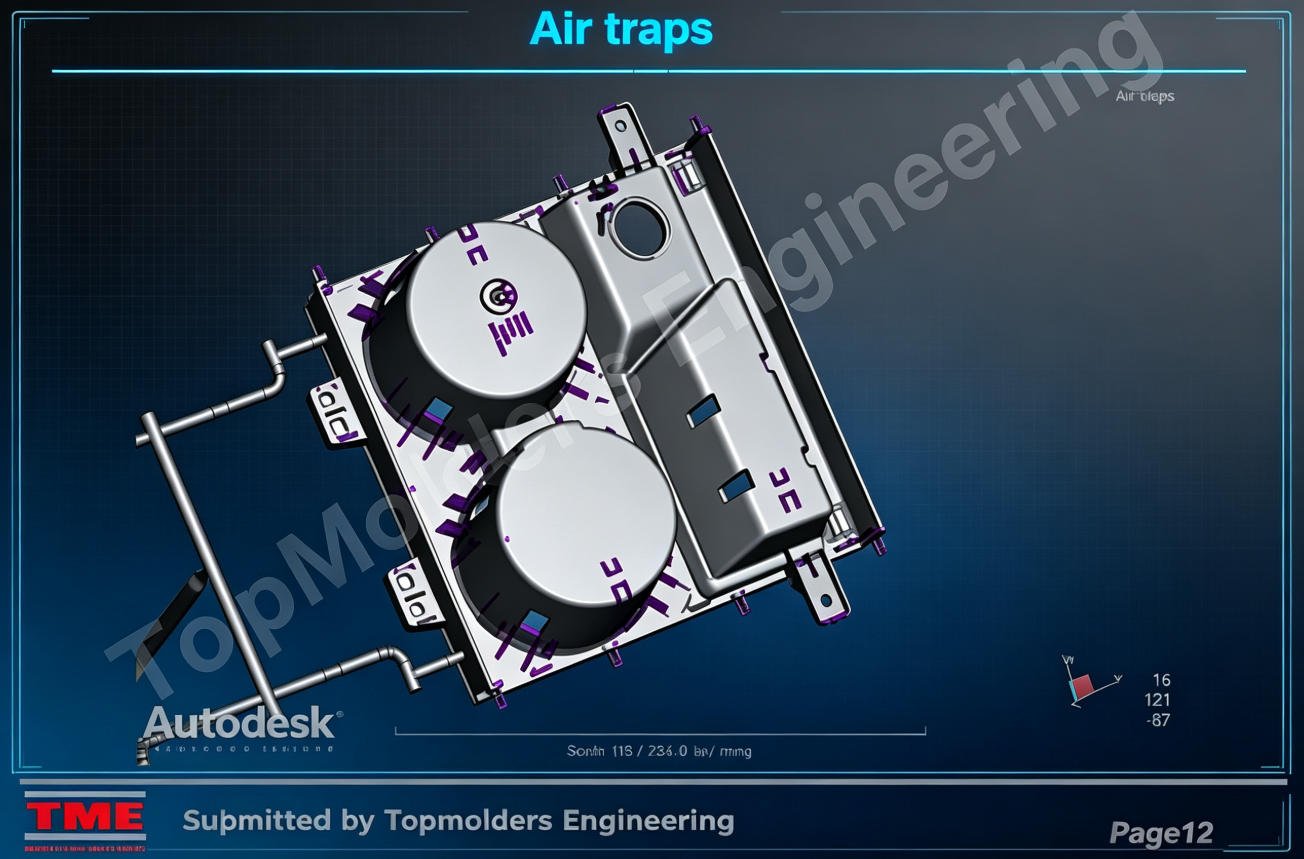

Simulate · Optimize · Validate Before Cutting Steel
→ Why this matters: Catch weld lines, air traps, and warp before the mold is built. No surprises on trial day.
TopMolders Engineering also provides high quality Moldflow Analysis services. We use Moldflow software to simulate the plastic injection molding process in the cavity, offering mold designers the best reference solution and greatly reducing tooling development lead time.
Moldflow Analysis includes:
- Component Analysis
- Runner Analysis
- Pressure Drop
- Weld Lines
- Air Traps
- Cooling Analysis
- Mold Pack
- Fill Time
- Sink Marks
- Flow Front Temperature
- Resin Selection
- Gate Locations
Why Moldflow? Identify and eliminate molding defects before tooling starts — saving time, money, and costly rework. Validate your design with confidence.

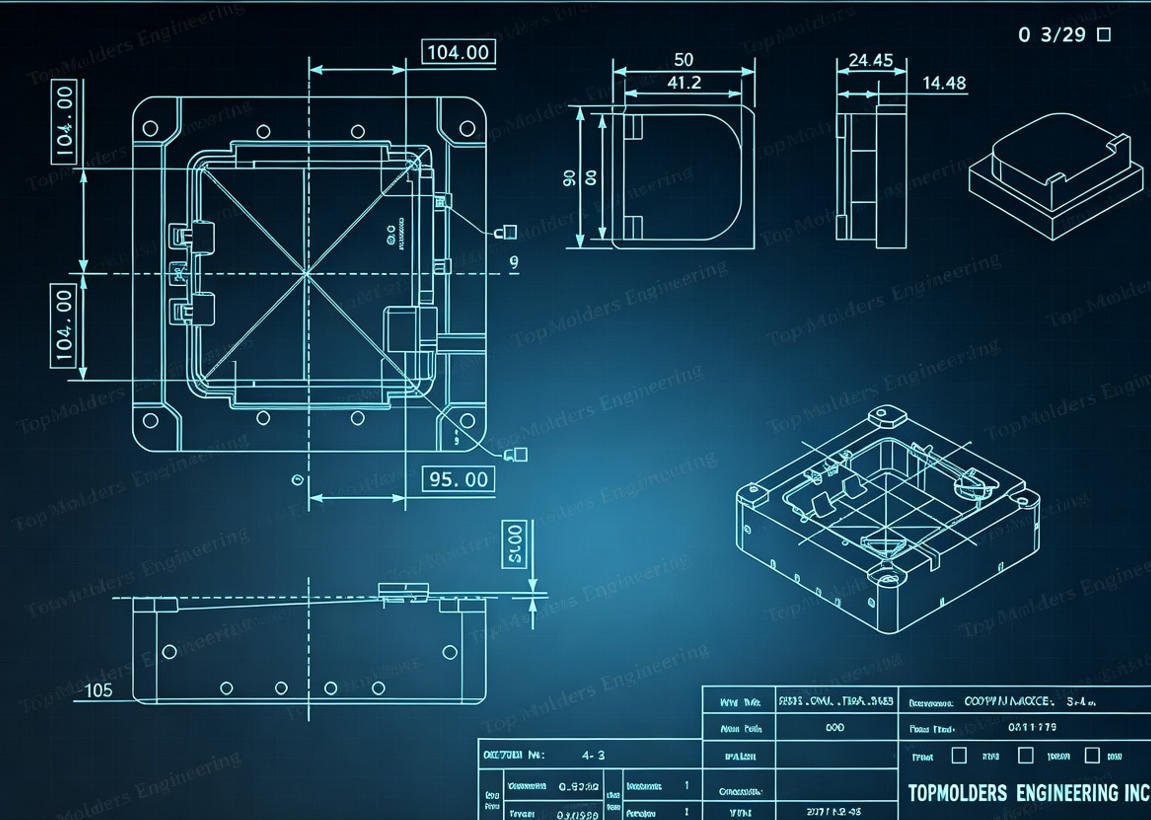

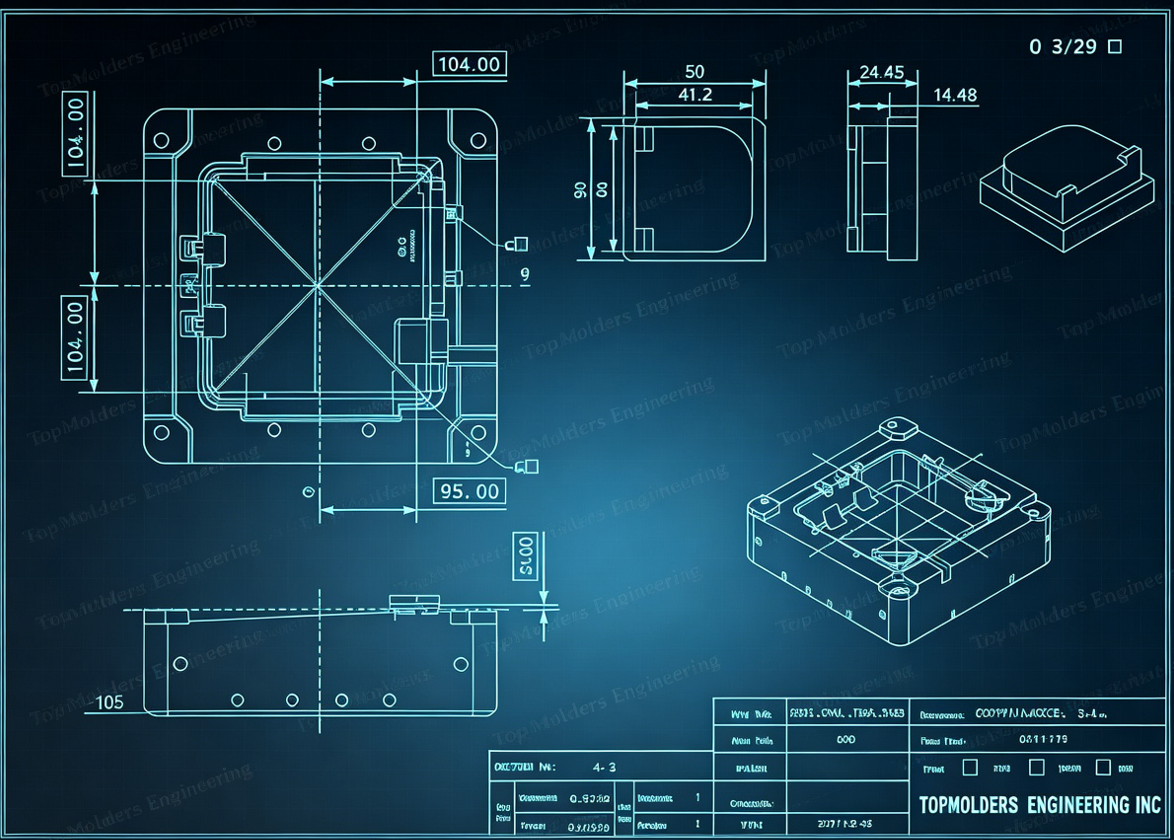

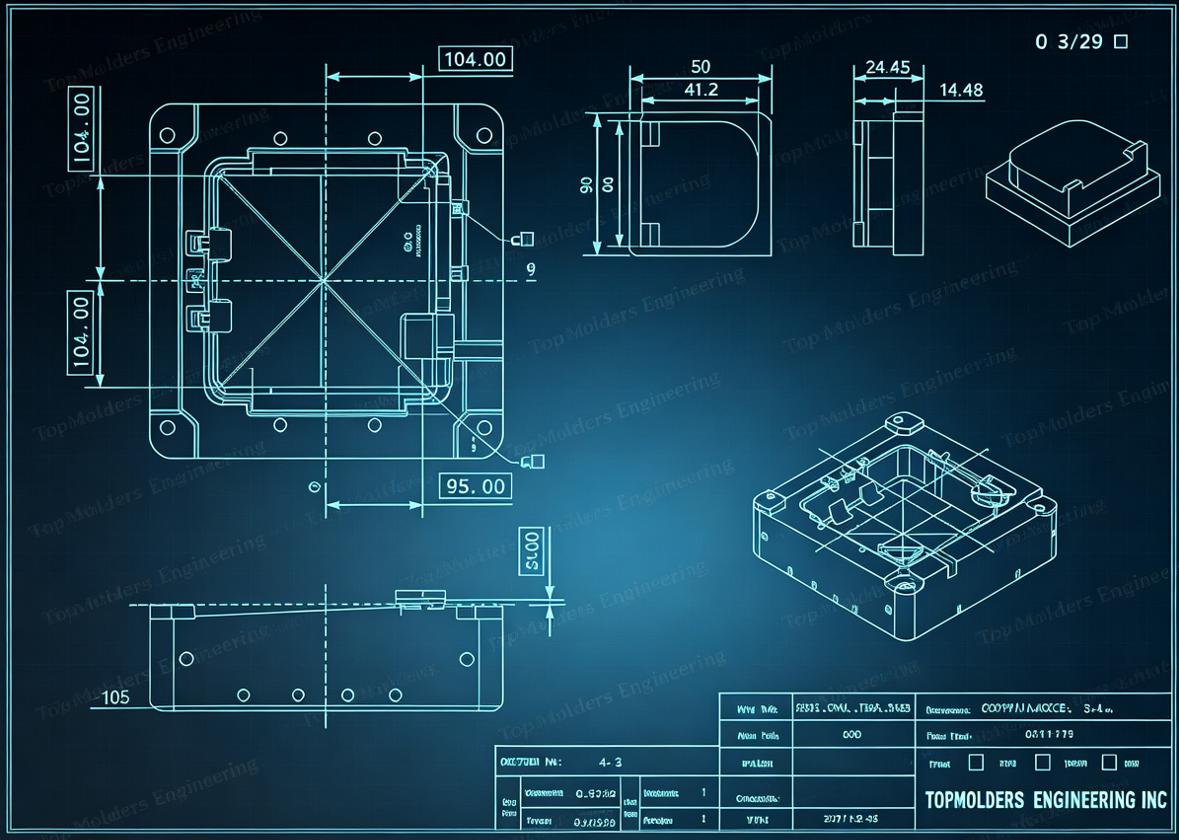

Error-Proof EDM · Faster Setup · Consistent Quality
→ Why this matters: Eliminate EDM setup errors. Your machinists spend less time guessing, more time cutting.
At TopMolders, based on your manufacturing capabilities, we analyze which details are more efficient to machine and which to burn. Based on that knowledge, we design every electrode for your mold complete with check sheets and EDM setup sheets.
We design electrodes that prevent mistakes from occurring in the program and setup of the EDM sinker by supplying X, Y, and Z locations in a data file to load directly into your EDM's memory. This eliminates manual data entry — both at our end and for the client.
We put an orientation chamfer on each electrode to allow your personnel to visually confirm that the electrode in the EDM is set up correctly.
We design all the electrodes associative with the main core and cavity geometry and supply associative Sinker EDM setup sheets for each insert with all the electrodes for that setup locations, over-burn and orbit patterns.
Key benefits: Eliminate manual data entry errors · Reduce EDM setup time · Visual verification with orientation chamfers · Fully associative with core/cavity · Complete setup sheets for every insert.

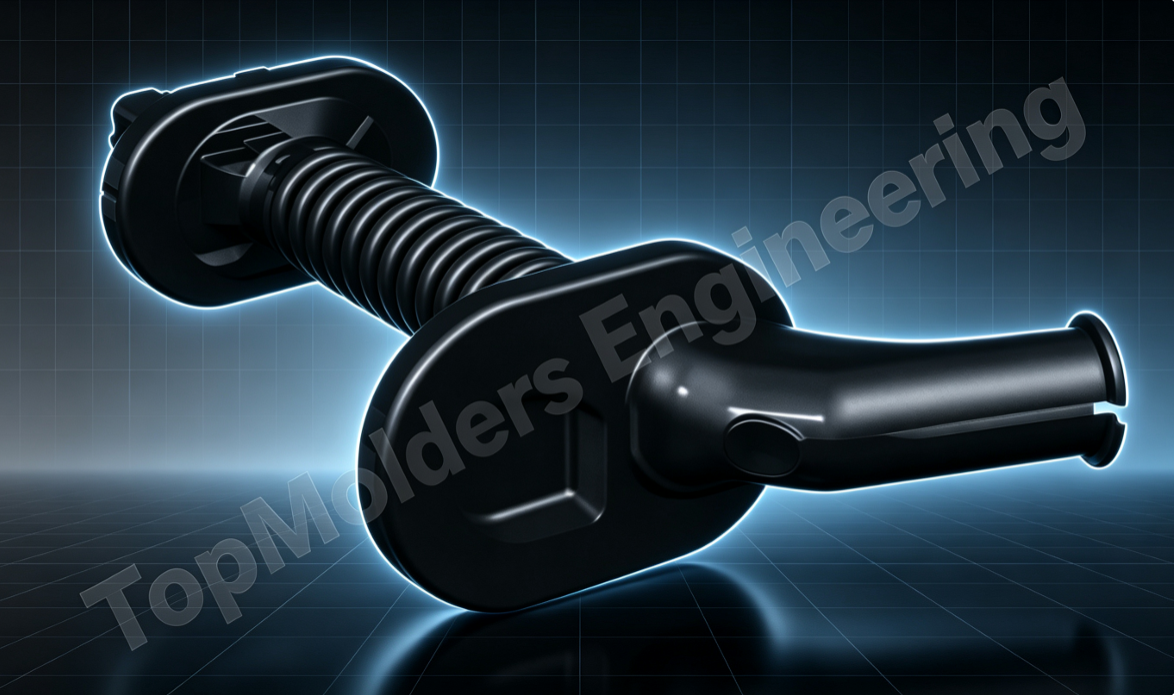

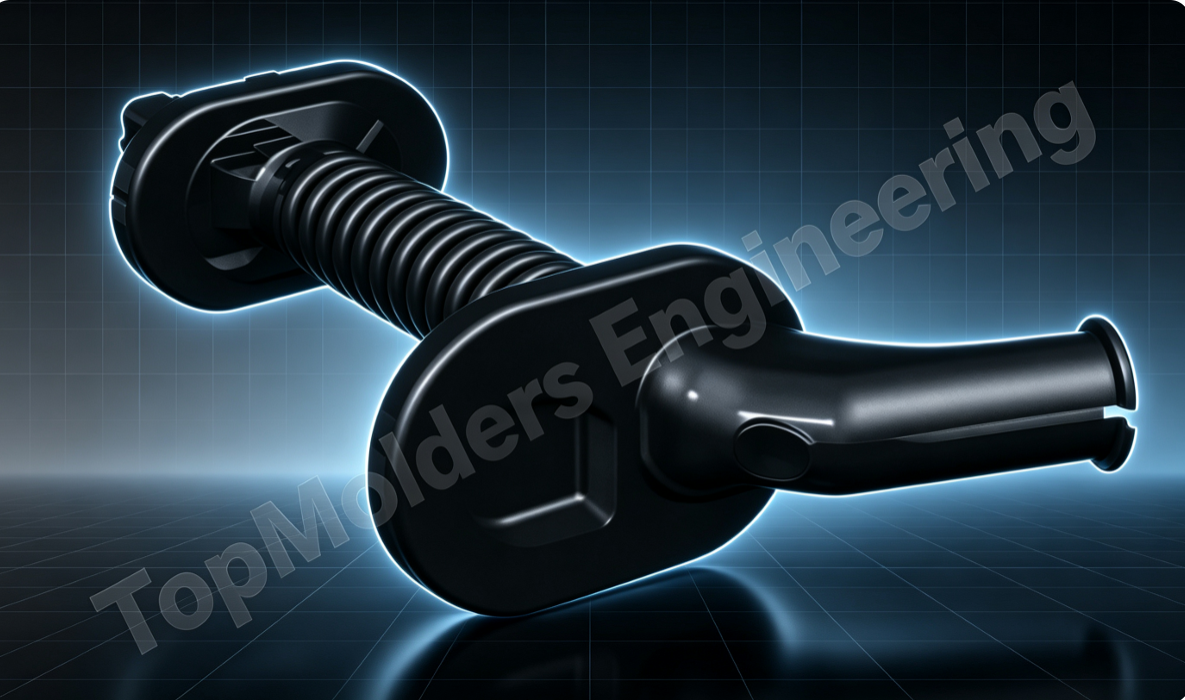

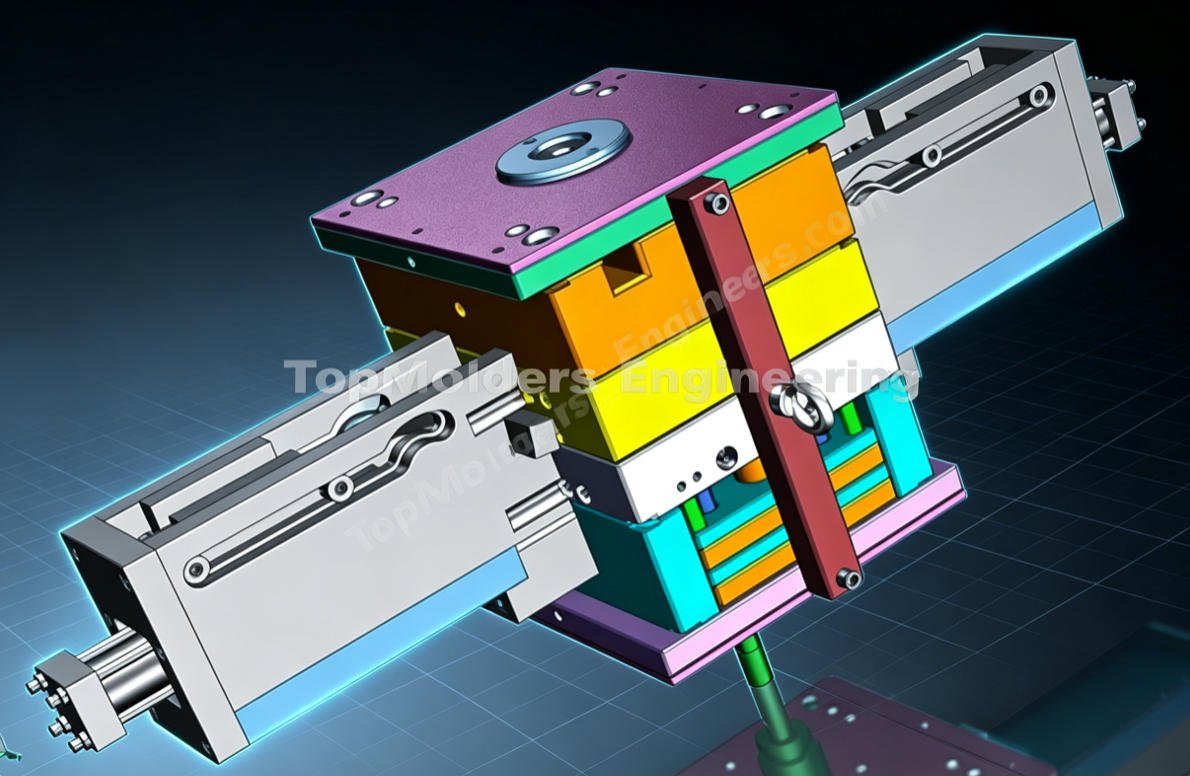

From Paper or 2D CAD to 100% Correct 3D
→ Why this matters: One accurate 3D model serves engineering, simulation, prototyping, and marketing — no rework, no translation errors.
Utilizing the latest release of Unigraphics (NX) mechanical CAD software, we produce 3‑D solid models of your piece part — developed from your paper drawings or 2‑D CAD data. These models are a 100% correct 3‑D representation of the final piece part, showing all detail.
By designing the mold in 3‑D, we enable the toolmaker to produce an accurate tool, preventing mistakes due to interpretation of 2‑D data or drawings, and reducing design and build time.
Key benefit: All of the above can be used singly or in combination to ensure your product functions as intended — reducing time and cost getting your product to market.
Our Professional Services
We don't just draw — we engineer solutions. Every service we offer is designed to break technical bottlenecks and open the door to high-value projects. We provide pre-project DFM risk control, mold flow simulation, and complex structure optimization — plus high-quality Electrode design, EDM drawings and Electrode modeling services to bridge the gap between design and manufacturing with precision and efficiency.
Break the cycle: Every service we offer is designed to break technical bottlenecks and open the door to high-value projects. Stop competing on price — start competing on capability.
Flexible & Standard-Ready: We design your mold independently from scratch, or custom-tailored to your exact specifications — including European, American, and Japanese mold standards. We incorporate standard mold bases and components from DME, HASCO, Omni, Progressive, PCS, Pedrotti, EOC, Meusburger, National, Rabourdin, egwhiter, and more.
What We Do — Complete Service List
TopMolders Engineering has full in-house capabilities for both part and tool design. We work with customers to develop from concept through production.
By Process
By Structure
By Industry
Engineering Services
Software Used
Input Formats
Deliverables — Complete Drawing Package
What We Design — Mold Types We Handle

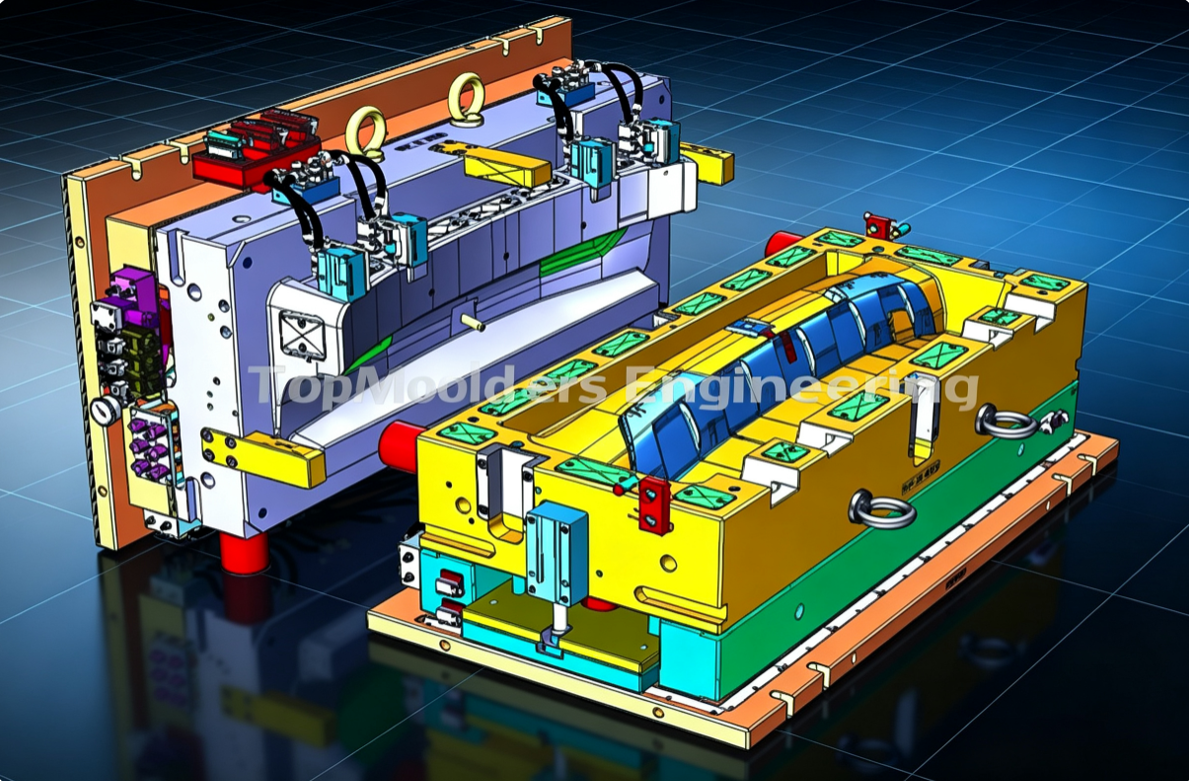

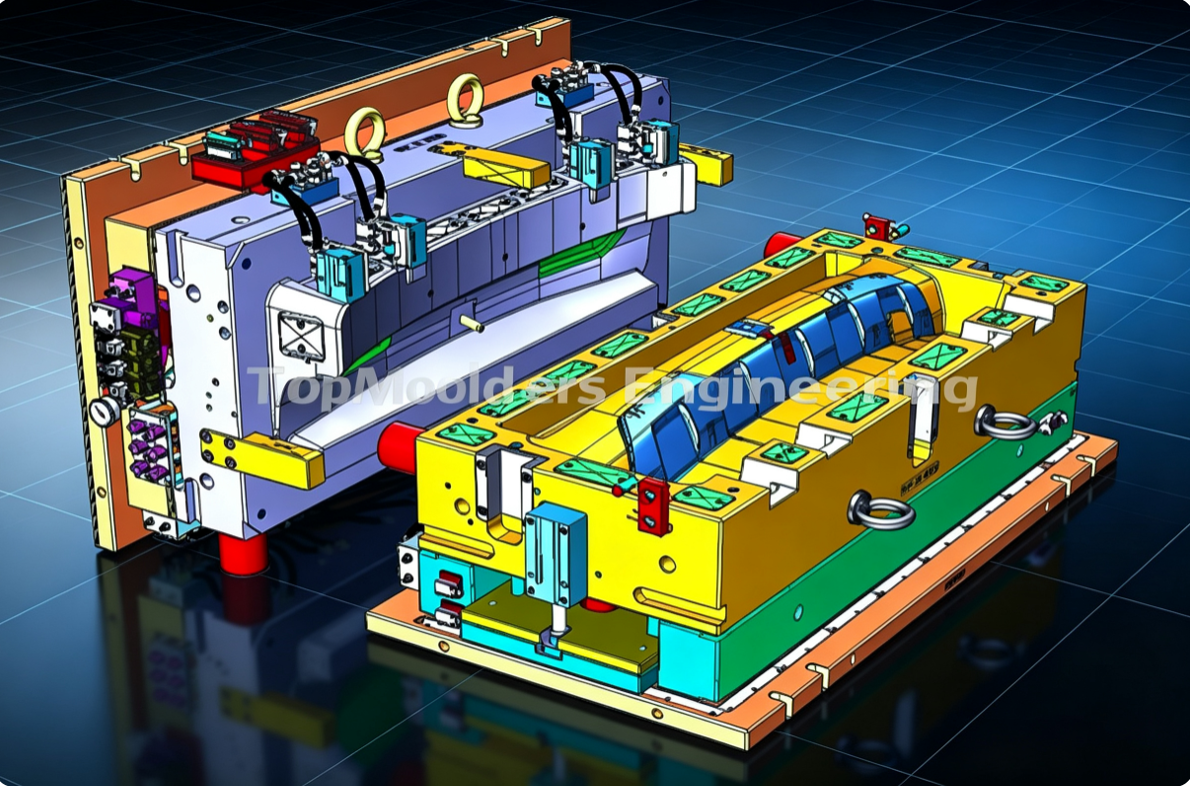

Injection Mold Design
Precision molds for automotive, medical, consumer goods — from scratch or standard bases. Designed to run, not to rework.

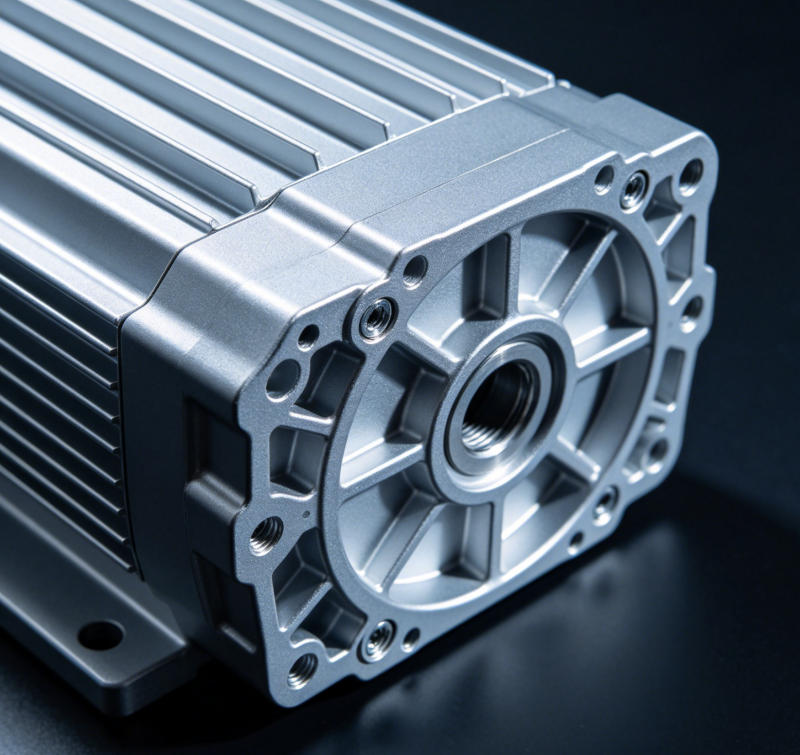

Die-casting Mold Design
Aluminum & zinc alloy die-casting molds with optimized runner systems. Porosity & shrinkage designed out from the start.
Moldflow & DFM Analysis
Fill analysis, cooling optimization, warp reduction — simulate the injection process to provide the best reference solution. Eliminate trial failures before they happen.

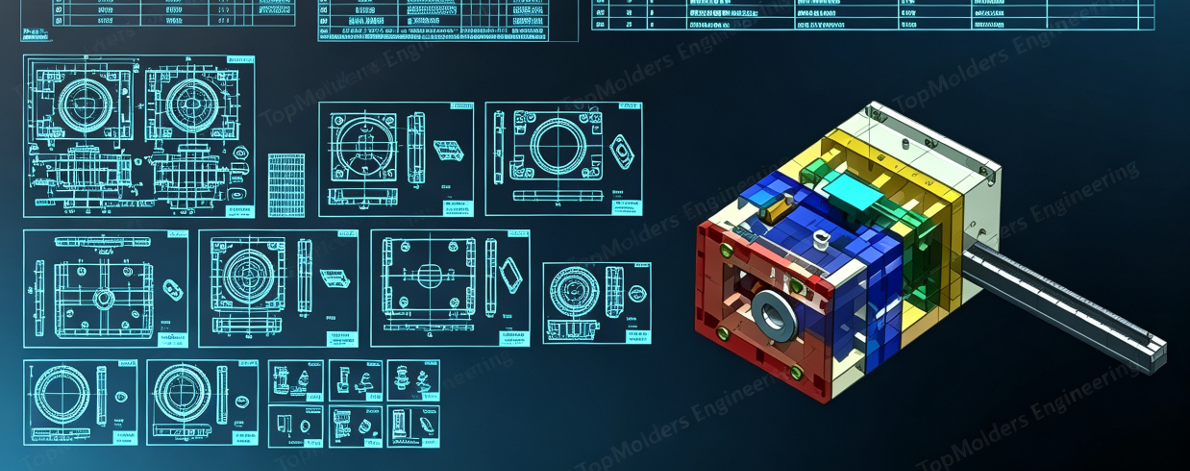

Full Project Outsourcing
Complete mold development from part design to production support. We become your external engineering department.

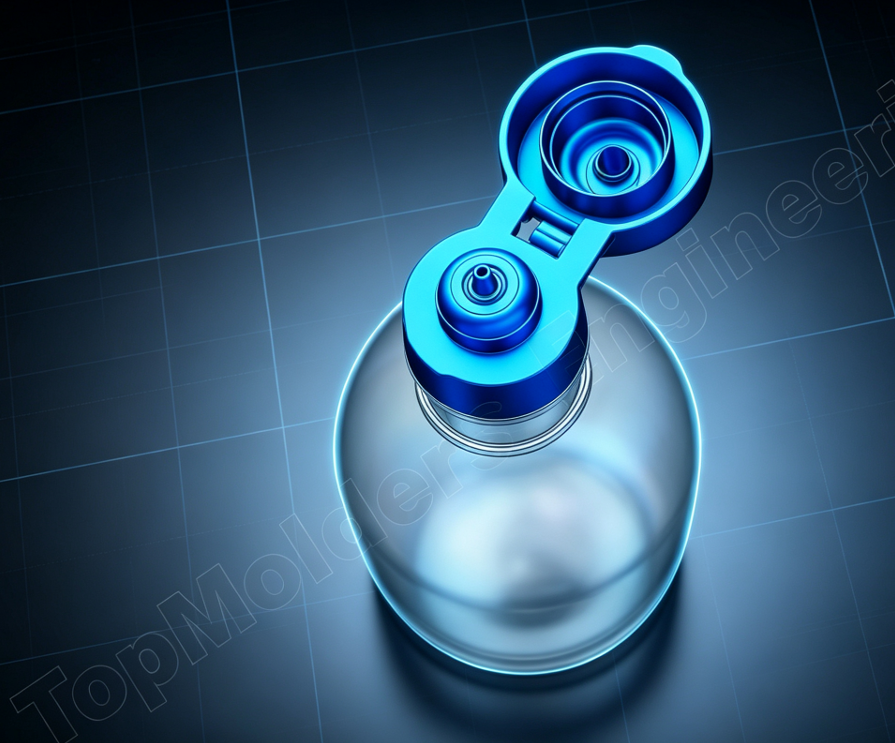

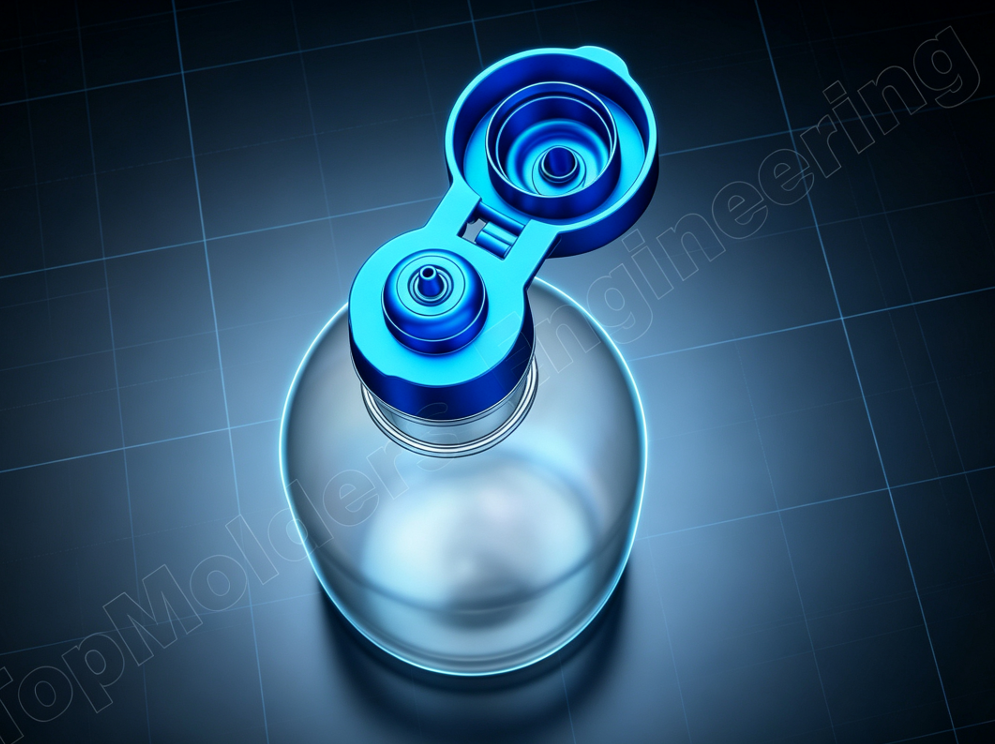

Product Design & Development
We design plastic parts with tooling in mind — not just aesthetics, but manufacturability. Parting lines and draft angles are built into your product from day one, eliminating surprises when samples are produced or when the mold manufacturer requests changes that delay production and increase costs.
Our experienced designers leverage CAD software automation and concurrent engineering to produce conceptual designs faster than you've ever seen.
Parallel Engineering: Product design + mold design + manufacturing planning happen simultaneously.
Electrode Design & EDM Support
High quality Electrode design, EDM drawings and Electrode modeling services. Each electrode comes with X/Y/Z data files, orientation chamfers, associative core/cavity geometry, and complete Sinker EDM setup sheets — eliminating setup errors, reducing lead time.
Complete Mold Design Capabilities
From simple to highly complex — we handle virtually every type of mold design project
Data Conversion
Seamless data exchange across all major CAD platforms. We convert your existing design files between native and neutral formats, ensuring full compatibility with your engineering environment — no data loss, no rework.
Supported formats:
Native: Unigraphics (NX), Pro/E (Creo), SolidWorks, CAD
Neutral: STEP, IGES, Parasolid, DWG, DXF, CGM
Delivery: Email attachment · FTP upload/download (yours or ours) · Custom methods upon request
Custom formats available on request — if it's not listed, just ask.
3D Solid Modeling
100% correct 3-D representations from paper or 2-D CAD — for engineering drawings, CAE, prototyping, and marketing.
